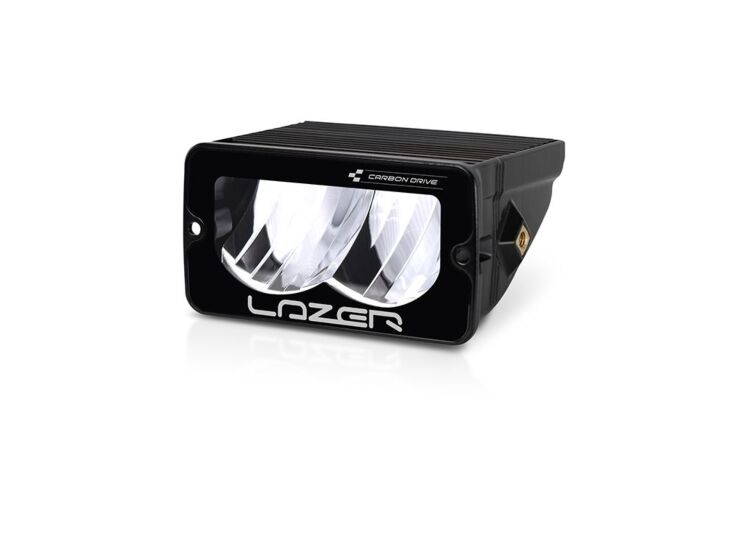

Lazer - Carbon-2 Drive (Gen3)

Included:

• x1 Carbon-2 Drive (Gen3)
• x1 Installation Instructions

Based on: 1x Carbon-2 Drive.

Technical Specifications

• Voltage Range (DC): 10-32V
• LED Lifespan: 50,000 hours
• IP Rating: IP68
• Weight: 232 g

High Beam Function

• Total Light Output: 3120 Lm
• Total Driver 'FOV' Light Output †: 1836 Lm
• Color Temperature: 5000K
• Number of High Output LEDs: 12
• Power Consumption: 29 W
• Peak Current (at 11V): 2.6 A
• Current Draw (at 14.4V): 2.1 A

Dimensions

• Width: 116 mm
• Depth: 85 mm
• Height: 62 mm

Photometric Data

• Horizontal Beam Angle: 60°
• 0.25 lx Line: 529 m
• 0.5 lx Line: 374 m
• 1 lx Line: 265 m
• 3 lx Line: 153 m
