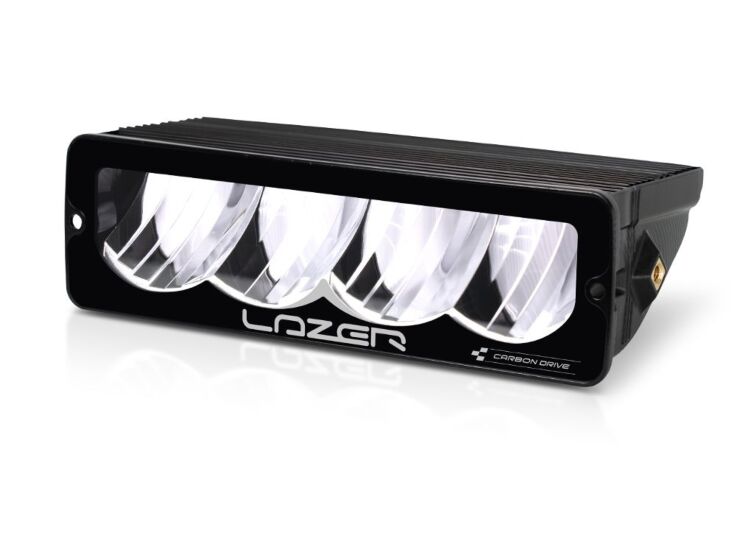

Lazer - Carbon-4 Drive (Gen3)
SKU:
00C4-DRIVE-G3-SFIX
Details
Included:
- x1 Carbon-4 Drive (Gen3)
- x1 Installation Instructions
Based on: 1x Carbon-4 Drive.
| Boost Mode | Low Output Mode | |
|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Lifetime | 50,000 hrs | 50,000 hrs |
| IP Rating | IP68 | IP68 |
| Weight | 355 g | 355 g |
High Beam Function
| Boost Mode | Low Output Mode | |
|---|---|---|
| Total Light Output | 6240 Lm | 1384 Lm |
| Total Driver 'FOV' Light Output † | 3673 Lm | 918 Lm |
| Color Temperature | 5000K | 5000K |
| Number of High Output LEDs | 24 | 24 |
| Power Consumption | 56 W | 14 W |
| Peak Current (11V) | 3.9 A | 1 A |
| Current Draw (at 14.4V) | 5.25 A | 1.3 A |
Dimensions
- Width: 206 mm
- Depth: 85 mm
- Height: 62 mm
Photometric Data
| Boost Mode | Low Output Mode | |
|---|---|---|
| Horizontal Beam Angle | 60° | 60° |
| 0.25 lx line | 748 m | 374 m |
| 0.5 lx line | 529 m | 265 m |
| 1 lx line | 374 m | 187 m |
| 3 lx line | 216 m | 108 m |
Technical specifications
| Manufacturer | Lazer |
|---|
