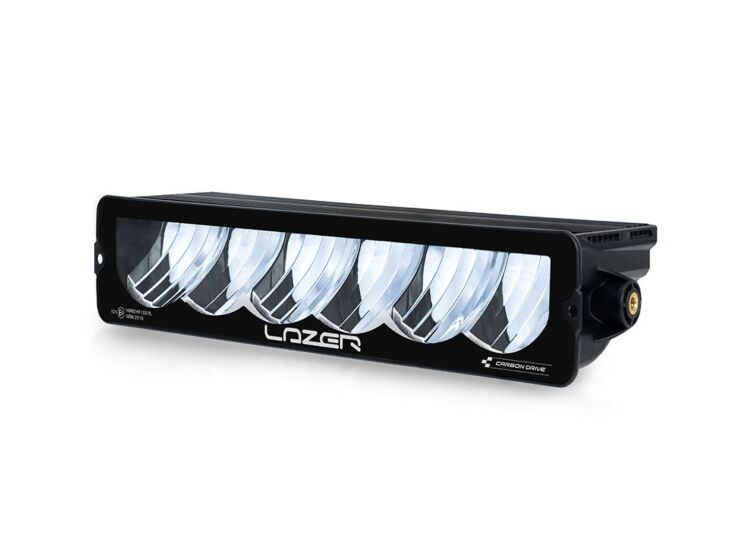

Carbon-6 Drive (Gen3)
SKU:
00C6-DRIVE-G3
Details
Included:
- x1 Carbon-6 Drive LED Lamp
- x1 Amber Lens Cover
- x1 Black Lens Cover
- x1 Installation Instructions
Based on: 1x Carbon-6 Drive LED Lamp.
| Boost Mode | Low Output Mode * | |
|---|---|---|
| Voltage Range (DC) | 10-32V | |
| LED Lifespan | 50,000 hours | |
| Weight | 0.45 kg | |
High Beam Function
| Boost Mode | Low Output Mode | |
|---|---|---|
| Total Light Output | 9360 Lm | 2340 Lm |
| Total Driver 'FOV' Light Output † | 6550 Lm | 1638 Lm |
| Color Temperature | 5000K | |
| Power Consumption | 85 W | 22 W |
| Peak Current | 7.2 A | 1.8 A |
| Current Draw (at 14.4V) | 5.9 A | 1.5 A |
| Connector | 4-Pin Deutsch DT (+25cm cable) | |
Dimensions
- Width: 315 mm
- Depth: 99 mm
- Height: 63 mm
Certification
- IP Rating: IP68
- High Beam (E9 approval): ECE R149 - Ref: 37.5 (only in Low Output Mode)
- EMC Certification: ECE R10
- Salt Spray Test: ISO 9227
- Dump Load Protection: ISO 7637-2
Photometric Data
| Boost Mode | Low Output Mode | |
|---|---|---|
| Horizontal / Vertical Beam Angle | 60° / 12° | |
| 0.25 lx Line | 959 m | 429 m |
| 0.5 lx Line | 678 m | 303 m |
| 1 lx Line | 480 m | 214 m |
| 3 lx Line | 288 m | 124 m |
Technical specifications
| Manufacturer | Lazer |
|---|
