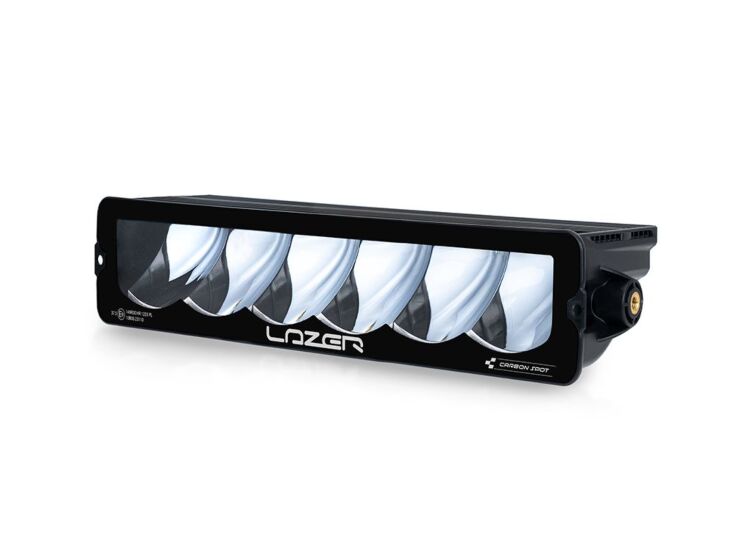

Lazer - Carbon-6 Spot (Gen3)

SKU:
00C6-SPOT-G3
€605.00
Incl. 21% Tax
  • Free shipping on orders over 100 euro in NL / BE / DE

  • Professional advice

  • Physical 1000 m2 showroom

Details

Included:

  • x1 Carbon-6 Spot LED Lamp
  • x1 Amber Lens Cover
  • x1 Black Lens Cover
  • x1 Installation Instructions

Based on: 1x Carbon-6 Spot LED Lamp.

  • Voltage Range (DC): 10-32V
  • LED Lifetime: 50,000 hours
  • Weight: 0.45 kg

High Beam Function

  • Total Light Output: 9360 Lm (Boost Mode) / 2340 Lm (Low Output / E-Mark Mode)
  • Total Driver 'FOV' Light Output †: 6560 Lm (Boost Mode) / 1640 Lm (Low Output / E-Mark Mode)
  • Color Temperature: 5000K
  • Power Consumption: 85 W (Boost Mode) / 22 W (Low Output)
  • Peak Current: 7.2 A (Boost Mode) / 1.8 A (Low Output)
  • Current Draw (at 14.4V): 5.9 A (Boost Mode) / 1.5 A (Low Output)
  • Connector: 4-Pin Deutsch DT (+25 cm cable)

Dimensions

  • Width: 315 mm
  • Depth: 99 mm
  • Height: 63 mm

Certification

  • IP Rating: IP68
  • High Beam (E9 Approval): ECE R149 - Ref: 37.5 (Low Output Mode only)
  • EMC Certification: ECE R10
  • Salt Spray Test: ISO 9227
  • Dump Load Protection: ISO 7637-2

Photometric Data

  • Horizontal / Vertical Beam Angle: 32° / 12°
  • 0.25 lx line: 1536 m (Boost Mode) / 687 m (Low Output)
  • 0.5 lx line: 1086 m (Boost Mode) / 486 m (Low Output)
  • 1 lx line: 768 m (Boost Mode) / 344 m (Low Output)
  • 3 lx line: 443 m (Boost Mode) / 198 m (Low Output)

Technical specifications

Technical specifications
Manufacturer Lazer
