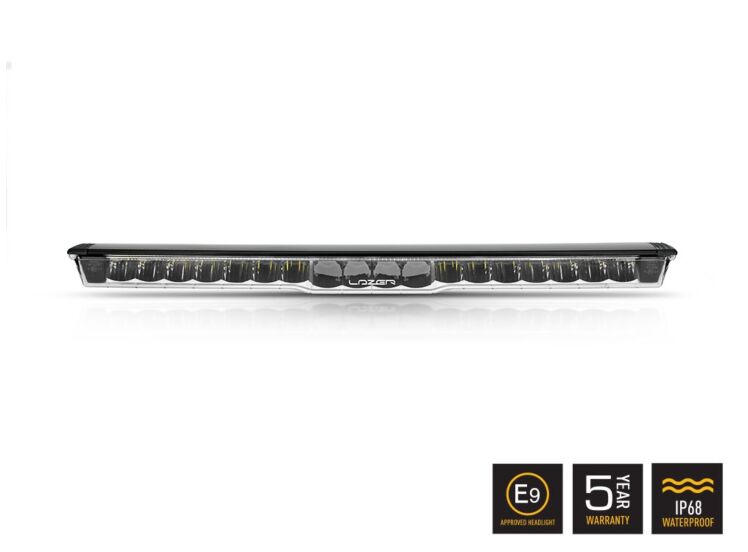

Lazer - Glide Elite
SKU:
0G18-EL-SM
Details
Included:
- x1 Glide Elite LED Lightbar
- x1 Side Mounting Kit (1131K)
- x1 Installation Instructions
Based on: 1x Glide Elite LED Lightbar.
Specifications
- Voltage Range (DC): 10-32V
- LED Lifespan: 50,000 hours
- Weight: 0.68 kg
- Connection: 2-Pin Superseal (+25 cm cable)
High Beam Function
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Total light output | 12,800 Lm | 3,840 Lm |
| Total driver 'FOV' light output † | 8,012 Lm | 2,403 Lm |
| Color temperature | 5000K | 5000K |
| Power consumption | 130 W | 38 W |
| Peak current | 12.6 A | 2.7 A |
| Current draw (at 14.4V) | 9.2 A | 2 A |
Dimensions
- Width: 517 mm
- Depth: 71 mm
- Height: 39 mm
Certification
- IP rating: IP68
- High beam (E9 approval): ECE R149 (Double E-Mark) - Ref: 2x 12.5 (only in Low Output Mode)
- EMC certification: ECE R10
- Salt spray test: ISO 9227
- Dump Load Protection: ISO 7637-2
Photometric data
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Horizontal / vertical beam angle | 66° / 14° | 66° / 14° |
| 0.25 lx line | 1249 m | 682 m |
| 0.5 lx line | 883 m | 484 m |
| 1 lx line | 624 m | 342 m |
| 3 lx line | 361 m | 197 m |
Technical specifications
| Manufacturer | Lazer |
|---|
