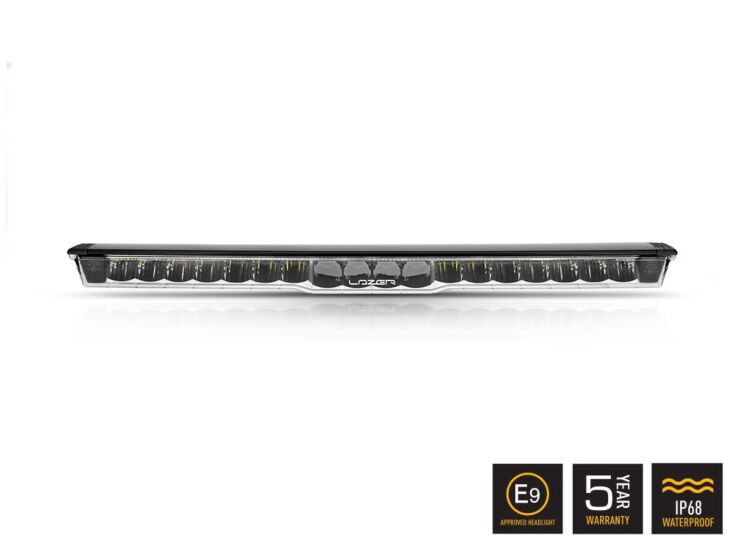

Lazer - Glide with Position Light
SKU:
0G18-PL-SM
Details
Included:
- x1 Glide (with Position Light) LED Lightbar
- x1 Side Mounting Kit (1131K)
- x1 Installation Instructions
Based on: 1x Glide (with Position Light) LED Lightbar.
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Lifetime | 50,000 hrs | 50,000 hrs |
| Weight | 0.68 kg | 0.68 kg |
High Beam Function
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Total Light Output | 11,500 Lm | 4,025 Lm |
| Total Driver 'FOV' Light Output † | 6,958 Lm | 2,435 Lm |
| Color Temperature | 5000K | 5000K |
| Power Consumption | 120 W | 42 W |
| Peak Current | 9.6 A | 2.6 A |
| Current Draw (at 14.4V) | 8.3 A | 2.3 A |
| Connector | 3-Pin Superseal (+25 cm cable) | |
Dimensions
- Width: 517 mm
- Depth: 71 mm
- Height: 39 mm
Certification
- IP Rating: IP68
- High Beam (E9 Approval): ECE R149 (Double E-Mark) – Ref: 2x 12.5 (Low Output mode only)
- Position Light (white): ECE R148
- EMC Certification: ECE R10
- Salt Spray Test: ISO 9227
- Dump Load Protection: ISO 7637-2
Photometric Data
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Horizontal / Vertical Beam Angle | 60° / 13° | |
| 0.25 lx line | 1095 m | 648 m |
| 0.5 lx line | 775 m | 458 m |
| 1 lx line | 548 m | 324 m |
| 3 lx line | 316 m | 187 m |
Technical specifications
| Manufacturer | Lazer |
|---|
