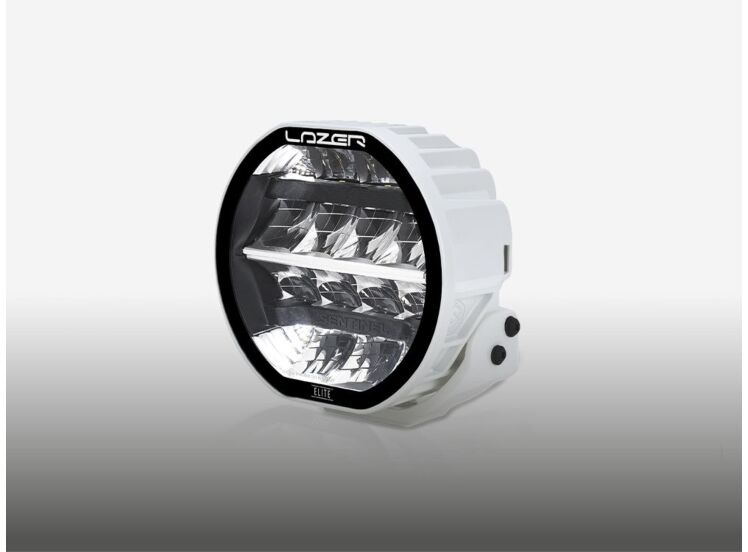

Lazer - Sentinel 7" Elite (White)

Included:

• x1 Sentinel 7'' Elite White LED Lamp
• x1 White 'Slim' Mount Kit
• x1 Black Lens Cover (LC-0S7-BLK)
• x1 Installation Instructions

Based on: 1x Sentinel 7'' Elite White LED Lamp.

• Voltage Range (DC): 10-32V
• LED Lifetime: 50,000 hours
• Weight: 2.5 kg

High Beam Function

• Total Light Output: 10,248 Lm (Boost) / 2,049 Lm (Low Output / E-Mark)
• Total Driver 'FOV' Light Output †: 6,380 Lm (Boost) / 1,276 Lm (Low Output / E-Mark)
• Color Temperature: 5000K
• Power Consumption: 116 Watt (Boost) / 23 Watt (Low Output / E-Mark)
• Peak Current: 8.8 A (Boost) / 1.8 A (Low Output / E-Mark)
• Current Draw (at 14.4V): 7.6 A (Boost) / 1.5 A (Low Output / E-Mark)
• Connector: 3-Pin Superseal (+25 cm cable)

Dimensions

• Width: 178 mm
• Depth: 81 mm
• Height: 180 mm

Certification

• IP Rating: IP68
• High Beam (E9 Approval): ECE R149 - Ref: 12.5 (Low Output Mode only)
• Position Light (white): ECE R148
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2

Photometric Data

• Horizontal / Vertical Beam Angle: 65° / 18°
• 0.25 lx line: 1233 m (Boost) / 551 m (Low Output)
• 0.5 lx line: 872 m (Boost) / 390 m (Low Output)
• 1 lx line: 616 m (Boost) / 276 m (Low Output)
• 3 lx line: 356 m (Boost) / 159 m (Low Output)
