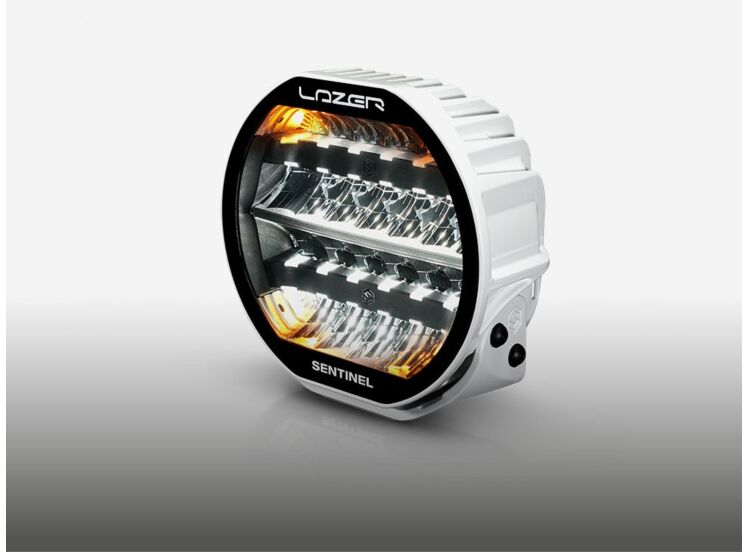

Lazer - Sentinel 9" Highline PL2 (White) - with Beacon Function
SKU:
0S9-HLE-WHT-PL2-BCN
Details
Included:
- x1 Sentinel 9'' Highline with Beacon - Gen2 (White)
- x1 'Slim' Mount Kit (1141k)
- x1 Installation instructions
Based on: 1x Sentinel 9'' Highline.
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Voltage Range (DC) | 10-32V | |
| LED Lifetime | 50,000 hrs | |
| Weight | 2.5 kg | |
High Beam Function
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Total Light Output | 17,020 Lm | 3,404 Lm |
| Total Driver 'FOV' Light Output † | 9,752 Lm | 1,950 Lm |
| Color Temperature | 5000K | |
| Power Consumption | 130 W | 26 W |
| Peak Current | 12 A | 2.4 A |
| Current Draw (at 14.4V) | 9.3 A | 1.8 A |
| Connector | 6-Pin Superseal (+25 cm cable) | |
Dimensions
- Width: 225 mm
- Depth: 90 mm
- Height: 230 mm
Certification
- IP Rating: IP68
- High Beam (E9 approval): ECE R149 – Ref: 12.5 (Low Output Mode only)
- Position Light (white): ECE R148
- Beacon Function: ECE R65 (XA1)
- EMC Certification: ECE R10
- Salt Spray Test: ISO 9227
- Dump Load Protection: ISO 7637-2
Photometric Data
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Horizontal / Vertical Beam Angle | 52° / 18° | |
| 0.25 lx line | 1166 m | 522 m |
| 0.5 lx line | 825 m | 369 m |
| 1 lx line | 583 m | 261 m |
| 3 lx line | 337 m | 151 m |
Technical specifications
| Manufacturer | Lazer |
|---|
