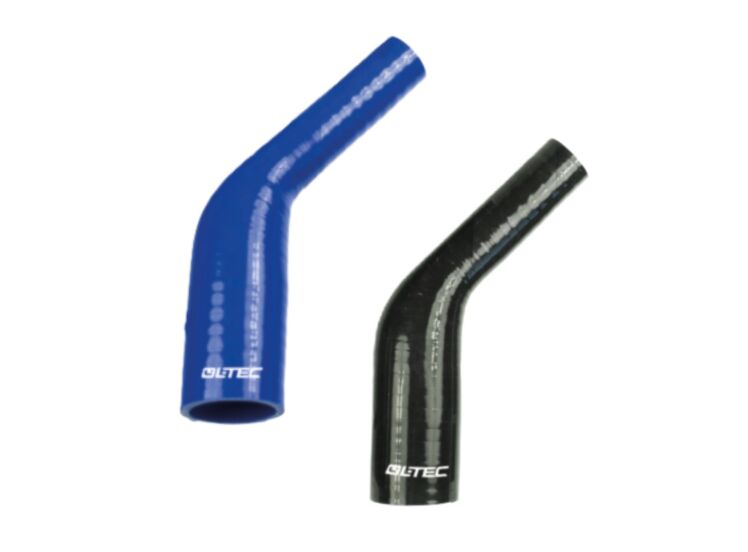

16MM - 13MM
SKU:
LTEC_R45-16-13
LTEC is the total brand for all race & rally needs!
Details
For (Cooling) Water and or Air Hose.
An overpressure of 4:1 bar is intended as a safe working pressure.
All silicone products are made according to ISO 9001 quality system. Certificate No.07103Q10016ROM.
Incoming diameter: 16 mm
Diameter measured: 13 mm
MM to centre: 100mm
The dimensions of the following clamp:
Before 16
Wide clamp: 25-27
Standard Clamp: 16-27
For 13
Wide Clamp: 21-23
Standard Clamp: 16-27
Technical specifications
| Manufacturer | LTEC |
|---|---|
| Angle | 45° |
| ISO Standard | 9001 quality system |
| Amount of layers | 3 layers |
| Liner | Silicone |
| To use for | Cooling water, Coolant and Air supply |
| Safe working pressure | An overpressure of 4:1 bar |
| Temperature range | -40 °C tot +180 °C |
