AST - Air Jack 55mm - 233mm Stroke 480kg Lift
SKU:
AJ45-340-230
Details
AST Air Jack Lifting system gen 2
AST's popular Air Jack system has undergone some changes and improvements from 2019.

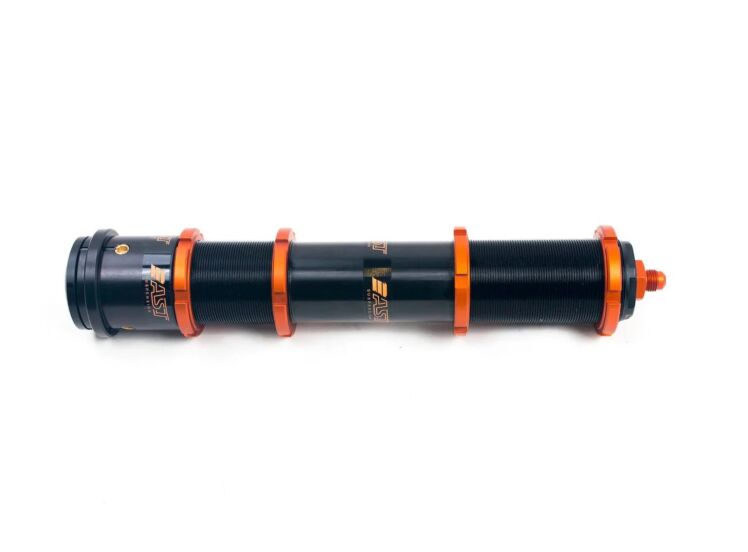

AST Air Jack 55mm - 233mm Stroke 480kg Lift
The AST Air Jack is developed to be fast, lightweight and reliable.
Price is per airjack
Prepare yourself for an easy wheel change, a quick maintenance or anything that may go wrong during a day on the track. With these airjacks you are ready for a fast and effective repair, so you can quickly hit the race track again. With the AST’s Air Jacks it’s very easy to lift the car’s wheels off the ground in just moments. With a lance (not included) you can apply air to the car, and the car will be raised off the ground.
Made in the Netherlands, Europe.
Air Jack Specifications:
- Lifting capacity of each air jack from 90Kg @ 5Bar up to 480Kg @ 30Bar. The maximum pressure is set to 30Bar.
- 55mm Diameter
- 230mm Life
- Total body height 338mm
- Each Jack weighs just 3.4lbs.
Improvements over the previous generation:
- Narrower body for more applications (fits Ø60mm tube used on Porsche Cup cars)
- Single-piece shaft for more stability
- Hard anodized Ø40mm shaft for optimal durability
- Dust scraper on the shaft for increased longevity
- Air bleeders with filters for safer blow-off
- Upgraded mechanical retraction
- Rebuildable
- Low Friction
- Mounting Height Adjustable
Technical specifications
| Manufacturer | AST |
|---|
