ATL Fuel Cell BMW E36 120 LTR

SKU:
ATLBMW/E36/120
  • Free shipping on orders over 100 euro in NL / BE / DE

  • Professional advice

  • Physical 1000 m2 showroom

Details

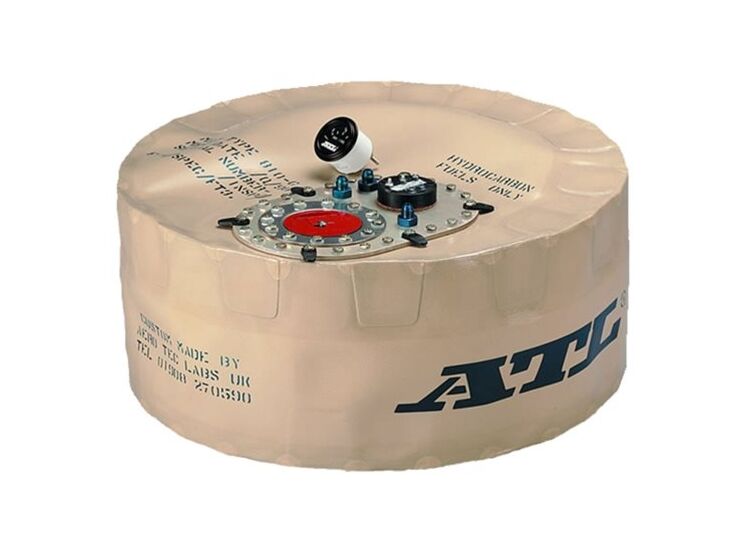

BMW M3 E36 120 Litre Fuel Cell

Designed to sit within the wheel well of the BMW E36 M3 with added height and a flat top section (not shown in image) to gain an additional 50L over the 70L variant. The base that sits in the wheel well has a diameter of Ø600mm.


Fuel Cell Specification:

• (1) Flush Filler Cap

• (1) -6 Fuel Outlet (taken from Internal Fuel Collector)

• (1) -6 Fuel Return (Return hose routed back into Internal Fuel Collector)

• (1) -6 Rollover Vent Valve

• (1) ATL Fuel Level Sender Unit

• (1) Dashboard Gauge (supplied loose)

• (1) Internal Fuel Collector (fitted with (3) ATL Trap Doors and (2) Guiding Vanes) for optimum fuel scavenge

• (1) 6x10 Oval Access Plate

• Internal Safety Foam Baffling - FM-AB-001

Technical specifications

Technical specifications
Manufacturer ATL
