Classic 250 Flange Neck

SKU:
CFN250
€70.42
Incl. 21% Tax
  • Free shipping on orders over 100 euro

  • Professional advice

  • Physical 1000 m2 showroom

Details

Specifications:

Options: N/A

Fixing Arrangement: 6 x M5 CSK Bolts

Applications: Fuel, Oil & Water Tanks

Compatibilities: Compatible with Add Blue

 Operation Temperature -40°C to +80°C

Finish: Anodise Silver +AA6 BS EN ISO 7599

Weight: 65.0 grams

Supplied With: Flange Neck

 M5 Screw Pack

 Gasket

Materials:

Flange: Aluminium Alloy 6082/T6

Seal Plate: Brass

Screw Pack: NBR Cork

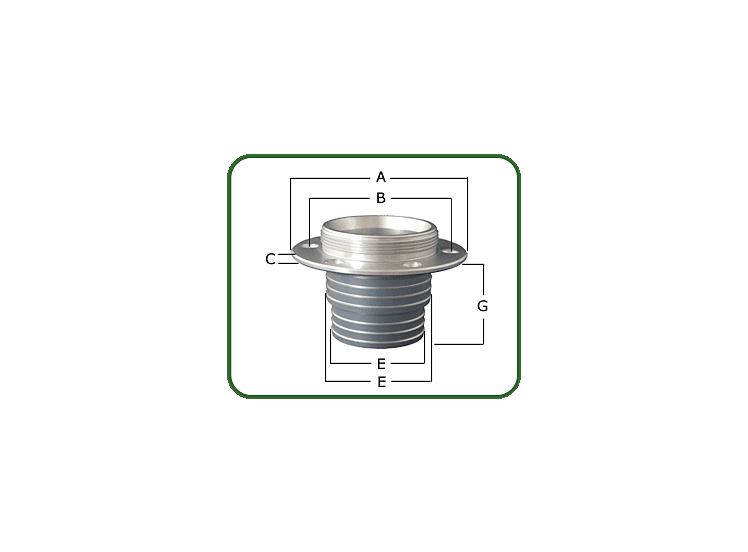

Dimensions:

Outer Diameter A: 94.0mm

Thread Specification B: 2.5” x 18TPI WHITFORM Med Thread

Height C: 16.0mm

PCD D: 6 x M5 CSK Holes on a 76.2mm PCD

Height + Diameter E: Ø57.0 x 26.0mm

Height + Diameter F: Ø50.0 x 20.0mm

Technical specifications

Technical specifications
Manufacturer Newton
