EWP80 Combo Remote Electric Water Pump & Controller (12V)
SKU:
EWP8907
Details
EWP®80 Combo Remote Electric Water Pump & Controller (12V)
The EWP®80 Electric Water Pump and LCD EWP®/Fan Digital Controller Combo – simple, do-it-yourself, easy to install, designed to complement or replace your existing belt-driven, mechanical water pump and engine thermostat, and operate your Thermatic® Fan.
The EWP®80 will fit most vehicle makes and models fitted with naturally-aspirated or turbo engines up to two litres, 12 Volt Only.
The revolutionary, Australian-designed EWP®80 is made from anti-corrosive, lightweight, heat-resistant, glass-filled nylon and incorporates a ceramic faced seal for long-life durability.
The EWP®80 greatly enhances engine cooling control while giving you added power and improved fuel economy. By removing the parasitic power losses of a belt-driven, mechanical water pump the EWP® can provide up to 10kW (13hp) of extra power and increased torque and used extensively in Intercooler applications.

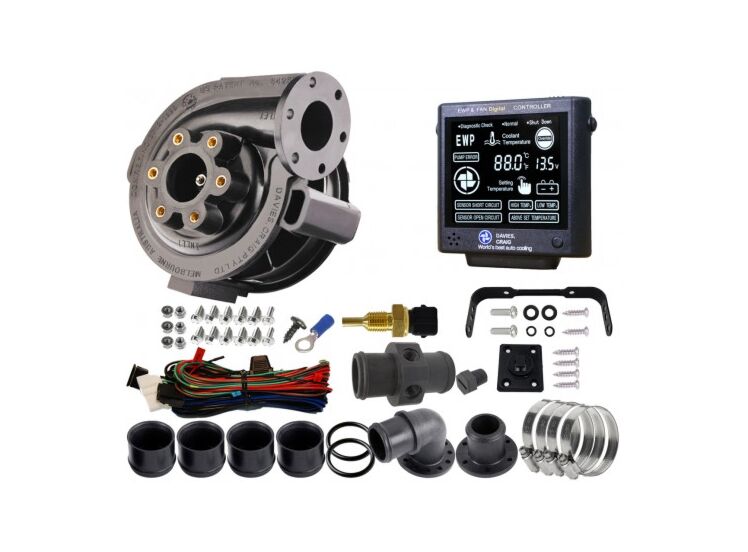

COMBO CONTENTS
| PART DESCRIPTION | UNITS |
|---|---|
| EWP®80 - Nylon 12V Assembly | 1 |
| Nylon Flange Adapter: 35mm Straight | 1 |
| Nylon Flange Adapter: 35mm 90° Elbow | 1 |
| Adapter - Rubber Sleeve - 3mm {1/8"} | 4 |
| HOSE CLAMP (WD9 40-60 W2) EWP (1110020130) | 4 |
| EWP ADAPTER O-RING | 2 |
| Wiring Harness - EWP & Fan controller : suits 8020, 8000, 8001 & 8002 | 1 |
| EWP®/Fan Digital controller | 1 |
| Adaptor - Nylon - In Line, 35mm (2 x 1/4" NPT) | 1 |
| 1/4" NPT Nylon - Bung | 1 |
| U-Bracket - For #8002 | 1 |
| Mounting Plate - For #8002 | 1 |
| SCREW - SELF TAP 8X3/8 BZ | 1 |
| BLUE 6mm Ring Terminal | 1 |
| 5x12 Flanged Hex Set Screw Zinc Silver | 6 |
| 5x16 Flanged Hex Set Screw Zinc Silver | 6 |
| M5 FLANGE NUT ZINC SILVER | 6 |
| Sensor Thermal - coolant temp - ¼" NPT thread | 1 |
TECHNICAL SPECIFICATIONS
| EWP®80 ELECTRIC WATER PUMP | LCD Controller | |||
|---|---|---|---|---|
| Operating voltage | 3V DC to 15V DC | Voltage range | 12V DC to 29V DC | |
| Maximum current | 7.5A @ 13V | Display LCD size | 64.6mm (2.54”) x 55.6mm (2.19”) | |
| Flow rate (max) | 90 L/min (23.8 US gal/min) @ 13V DC | Maximum current | 12Amps | |
| Operating temp. | -40° to 120°C (-40° to 248°F) | Warning alarm | High & low Temp., Above set temp., Sensor short circuit, Pump error, High & low voltage and Sensor open circuit | |
| Pump design | Clockwise centrifugal with volute chamber | Targeted (set) temperatures | Singular degrees from: 40°C (104°F) to 110°C (230°F) | |
| Pump weight | 900 grams (2.0 lb) | Memory | Set & targeted temperature | |
| Pump material | Nylon 66, 30% glass-filled | Fan cut-in temp. | 3°C (5.4°F) above the targeted (set) temperature | |
| Burst pressure | 350 kPa (50 psi) | Controller type | PCB with micro-processor | |
| Seal | Ceramic face seal | Sensor type | Thermister in housing | |
| Fits hose sizes | 32mm to 51mm (1⅜” to 2”) | Overrun/ shutdown | -10°C (14°F) below set/target temperature or 3 minutes | |
| Self Priming | No, none of our pumps are self-priming | Indicators | Temperature, power, EWP, test, fan, high & low temp, voltage, above set temperature (with alarm) | |
| Weight | 100 grams (3.5 oz) | |||
| Dimensions | Length = 98mm (3.8") Width = 95mm (3.7") Depth = 25mm (1”) | |||
Combined with an LCD EWP®/Fan Digital Controller will manage both the EWP® and Thermatic® fan operation. The Digital Controller will vary the speed of the EWP® in response to the engine’s coolant temperature. Multiple temperature settings are provided on the Controller for either maximum power or fuel efficiency. The Thermatic® Fan/s will be activated automatically once the engine coolant rises 3°C (5.4°F) above the targeted (set) temperature. The Digital Controller will automatically run on for three minutes (or to 10°C / 14°F below the set temperature) after engine shut down, eliminating ‘heat soak’ and extending engine life. The EWP® Controller Combo Pack is supplied in a do-it-yourself kit with everything you need for fitment to your vehicle’s engine, including an easy-to-follow DIY instruction booklet.
Technical specifications
| Manufacturer | EWP |
|---|
