EWP150 Combo Remote Electric Water Pump & Controller (12V)
Details
EWP®150 Combo Remote Electric Water Pump & Controller (12V)
Muscle up your engine cooling system with the Davies Craig EWP®150 alloy Electric Water Pump and the LCD EWP®/Fan Digital Controller.
Like all EWP®s, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat & intercooler applications

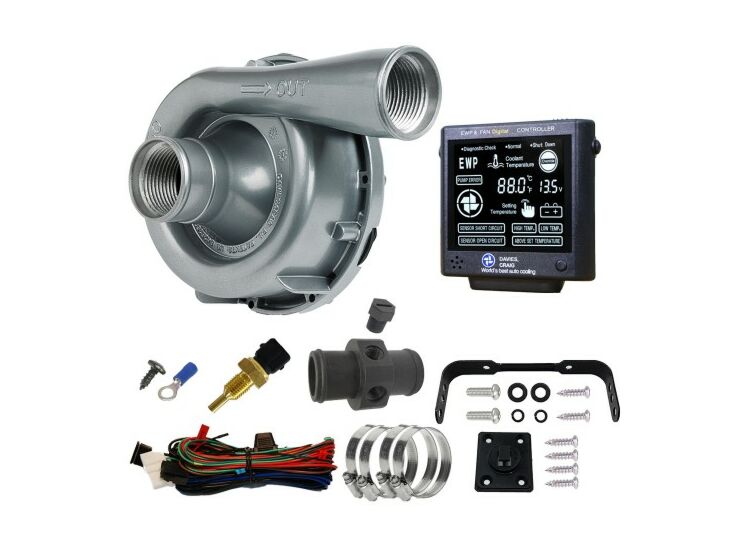

Kit Contents
| PART DESCRIPTION | UNITS |
|---|---|
| EWP®150 Alloy | 1 |
| EWP®/Fan Digital Controller & Mounting Plate + Bracket | 1 |
| Sensor Thermal - coolant temp - ¼" NPT thread | 1 |
| Adaptor - Nylon - In Line, 38mm (2 x 1/4" NPT) | 1 |
| 1/4" NPT Nylon - Bung | 1 |
| Wiring Harness | 1 |
| Hose Clamps | 4 |
| SCREW - SELF TAP 8X3/8 BZ | 1 |
| BLUE 6mm Ring Terminal | 1 |
Technical Specifications
| EWP150 - ELECTRIC WATER PUMP | LCD CONTROLLER | |||
|---|---|---|---|---|
| Operating voltage | 3V DC to 15V DC | Voltage range | 12V DC to 29V DC | |
| Maximum current | 10A @ 13V | Display LCD size | 64.6mm x 55.6mm | |
| Flow rate (max) | 162L/min @ 13V DC | Maximum current | 12Amps | |
| Operating temp. | -40° to 120°C | Warning alarm | Various conditions listed | |
| Pump design | Clockwise centrifugal with volute chamber | Targeted (set) temperatures | 40°C to 110°C | |
| Pump weight | 1,170 grams | Memory | Set & targeted temperature | |
| Pump material | Aluminium | Fan cut-in temp. | 3°C above set temp | |
| Burst pressure | 500 kPa | Controller type | PCB with micro-processor | |
| Seal | Ceramic face seal | Sensor type | Thermister in housing | |
| Self Priming | No | |||
| Fits hose size | 35mm to 51mm | Overrun/ shutdown | -10°C below set temp or 3 min | |
| Internal Fitting | -16AN ORB | Weight | 100 grams | |
| Push-On fitting Size | 38mm (options with sleeve) | Dimensions | 98mm x 95mm x 25mm | |
EWP & CONTROLLER INSTALLATION DEMONSTRATION
The compact EWP®150 alloy unit is manufactured with AN-16 ORB internal inlet and outlet fitting for neat, tight screw-in fitting applications. This rugged alloy hi-flow electric water pump is designed to complement or replace the engine’s existing mechanical water pump. This essential performance part increases power to your vehicle’s drive wheels and improves coolant temperature control.
The EWP®150 is a universal, do-it-yourself, easy installation fitment to engines up to seven litres. By removing the parasitic power losses of belt-driven water pumps, the EWP®150 releases up to 10kW (13hp) of extra power, increased torque and fuel savings. Combine it with the LCD EWP®/Fan Digital Controller and the pump continues to run after you’ve switched off, eliminating “heat soak” and extending engine life.
The EWP®150 and LCD EWP®/Fan Digital Controller Combo Kit is the most economical way to increase horsepower and save on fuel consumption whilst caring for your engine.
Technical specifications
| Manufacturer | EWP |
|---|
