EWP115 Alloy Remote Electric Water Pump (24V)
SKU:
EWP8041
Details

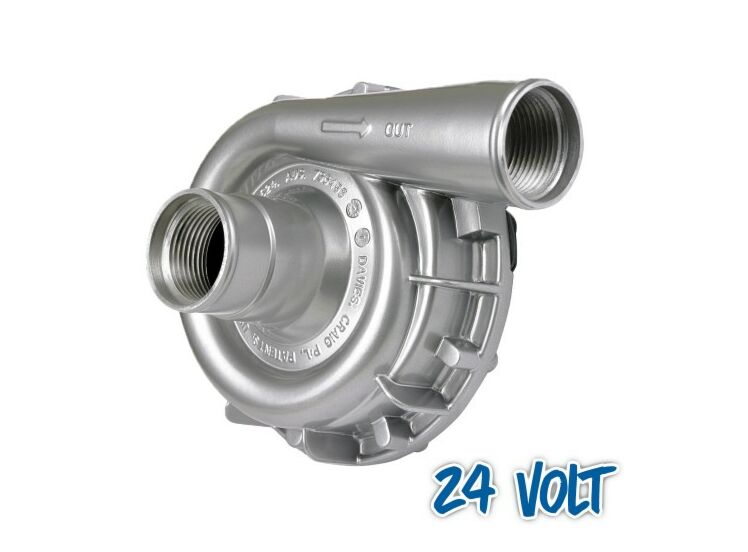

EWP115 Alloy Remote Electric Water Pump (24V)
The EWP®115 pump is suitable for small, medium, large, high- performance and 4WD vehicles. It’s a performance product that improves engine cooling control and capacity whilst giving you more power and torque and improved fuel economy.
The EWP®115 is a practical alternative to the mechanical belt-driven pump or fitted as an auxiliary pump. Mechanical belt-driven water pumps run directly off the motor and sap engine power … the EWP®115 is hardwired into your electrical system, by-passing the engine and releasing up to an additional 10kw (13hp).
KIT CONTENTS
| PART DESCRIPTION | UNITS |
|---|---|
| EWP®115 (Alloy) 24V | 1 |
TECHNICAL SPECIFICATIONS
| Voltage | 24 Volt Pump |
| Operating voltage | 20V DC to 27V DC |
| Maximum current | 5.5A @ 24V |
| Flow rate (max) | 139 L/min (36.7 US gal/min) @ 24V DC |
| Operating temp. | -40° to 130°C (-40° to 266°F) |
| Pump design | Clockwise centrifugal with volute chamber |
| Pump weight | 920 grams (2.03 lb) |
| Pump material | Aluminium (powder coated) |
| Burst pressure | 500 kPa (72.5 psi) |
| Seal | Ceramic face seal |
| Self Priming | No, none of our pumps are self-priming |
| Fits hose sizes | 35mm to 51mm (1⅜” to 2”) Inlet: -16AN (12) Outlet: -16AN (12) |
| Push-On fitting Size | EWP Inlet & Outlet 38mm with 3mm Sleeve (#8510) 44mm with 6mm Sleeve (#8511) 51mm |
Combined with an LCD EWP®/Fan Digital Controller (Sold separately Part #8002 or EWP® Combo Pack) will manage both the EWP® and Thermatic® fan operation. The Digital Controller will vary the speed of the EWP® in response to the engine’s coolant temperature. Multiple temperature settings are provided on the Controller for either maximum power or fuel efficiency. The Thermatic® Fan/s will be activated automatically once the engine coolant rises 3°C (5.4°F) above the targeted (set) temperature. The Digital Controller will automatically run on for three minutes (or to 10°C / 14°F below the set temperature) after engine shut down, eliminating ‘heat soak’ and extending engine life. The EWP® Controller Combo Pack is supplied in a do-it-yourself kit with everything you need for fitment to your vehicle’s engine, including an easy-to-follow DIY instruction booklet.
Technical specifications
| Manufacturer | EWP |
|---|
