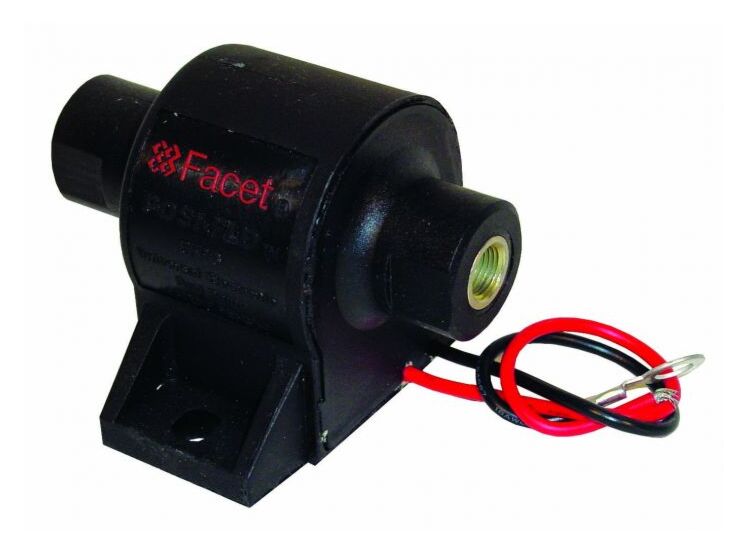

Facet 60107 Posi-Flow Fuel pump

This is an outstanding, lightweight universal electronic fuel pump with state-of-the-art design that can be used in all carburetor-equipped vehicles and also as a diesel lift pump. In many applications, the advanced technology engineered into the Facet POSI-FLO fuel pump allows for a convenient interchange with the cube fuel pump. In addition it runs quieter, 65DB, versus the noise levels exhibited by earlier competitive solid state technologies. It is rated for 6000 hours of performance. The Facet Posi-Flo Fuel Pumps self-priming capabilities provide up to 12 inches of fuel lift and no extended cranking is necessary to restart the engine if out-of-fuel conditions occur.

Specification:- Posi Flow

Pump:- 60107

Voltage:- 12v

Earth:- Neg

One Way Valve :- Yes

Pressure (Psi):- 7-10

Flow:- US Gallons/Hr:-34

Dry Prime Height in Mtrs:- 1.0 (36 Inches)

Thread Size:- 1/8th nptf

Operating Temperature:- -40º F to 180° F (all Models)

Length: 85mm

Height: 60mm

Weight: 0.35kg

Legal Requirements:- Certified & Complies With EEC 95/54 Requirements

Please Note: The product in not suitable for use in the aircraft industry

Cross Reference: 070191
