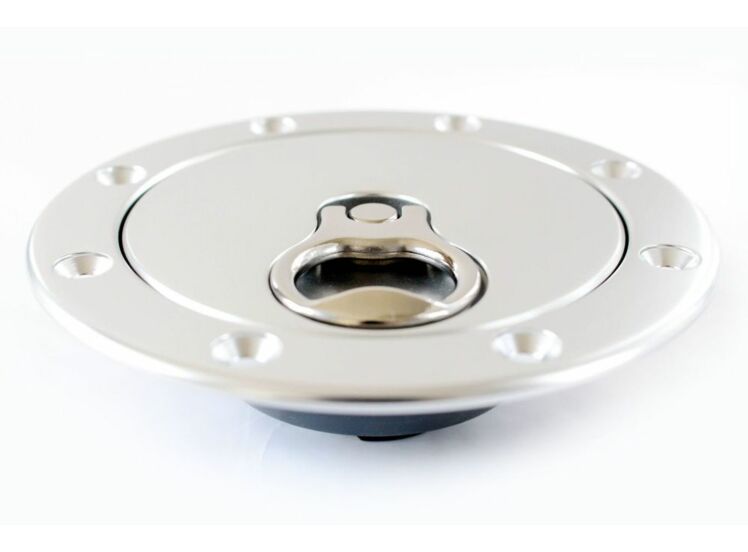

Flens met 8 schroeven, zonder slot

SKU:
A68S
€151.94
Incl. 21% Tax
  • Free shipping on orders over 100 euro in NL / BE / DE

  • Professional advice

  • Physical 1000 m2 showroom

Details

Specifications:

Fixing Arrangement: 8 x M05 CSK Bolts

Applications: Fuel, Oil & Water Tanks

Compatibilities: Compatible with Jet Fuel 100LL

Operation Temperature -40°C to +80°C

Finish: Anodised

Weight: 200.0 grams

Supplied With: Cap

Flange

Screw Pack (CSK Bolts, Washers & Nyloc Nuts)

Gasket

Materials:

Centre Cap: Aluminium Alloy 6082/T6

O-Ring: Viton A (FPM or FKM)

Saddle: Acetal POM Kepital F20-03

Lever & Centre Pin: Stainless Steel 303/304

Washer & Nyloc Nut: Stainless Steel A2 Type

Gasket: Neoprene Bonded Cork (NBR)

Dimensions:

Outside Diameter A: 126.0mm

Centre Diameter B: 92.0mm

Bolts Circle Diameter C: 108.0mm

Depth D: 40.0mm (Adjustable)

Spigot E: 98.6 (Ø100 Cut-Out)

Neck Diameter: N/A

Flange Thickness: 3.25mm

Technical specifications

Technical specifications
Manufacturer Newton
