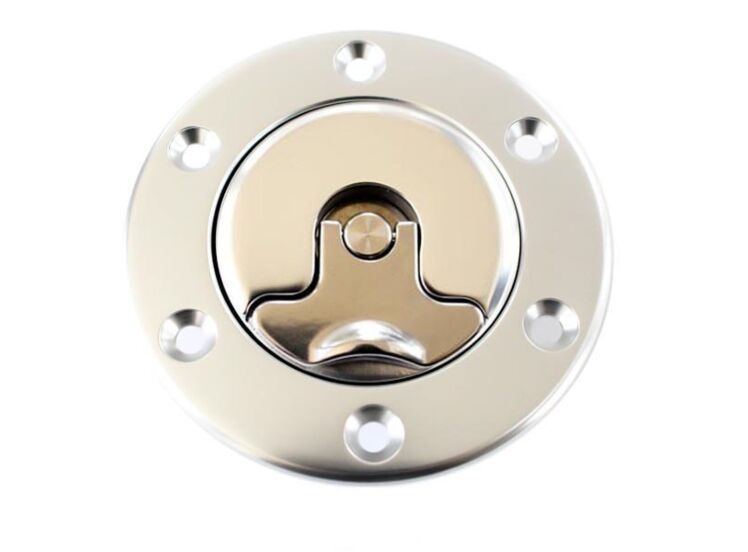

Newton Aero 200 Filler Cap Non-Locking

Newton Aero 200 Filler Cap,
6 Bolt Flange
Non-Locking
All Silver

Specifications:

Mounting Method: 6 x M04 CSK Bolts

Applications:                                Fuel, Oil & Water Tanks

Compatibility: Suitable for Jet Fuel 100LL

                                                        Operating Temperature -40°C to +80°C

Finish:         Anodised Bright (Silver)

Weight:                 82.0g

Supplied with: Cap

                                                        Flange

                                                        M04 Screw Pack (CSK Screws, Washers & Nyloc Nuts)

                                                        NBR Cork Gasket

Material:

Centre Cap:         Aluminium Alloy 6082/T6 Forging

O-Ring:                                        Viton A (FPM or FKM)

Saddle:                 Acetal POM Kepital F20-03

Lever & Centre Pin: Stainless Steel 303/304

Washer & Nyloc Nut:                    Stainless Steel A2 Type

Gasket:                 Neoprene bonded cork (NBR)

Dimensions:

Outside Diameter A:                    80.0mm

Centre Diameter B: 47.0mm

Bolt Circle Diameter C: 63.5mm

Depth D:         28.2mm (Adjustable)

Connection Spout: 50.5 (Ø51.50 cut out)

Neck Diameter:         N/A

Flange Thickness:                        2.5mm
