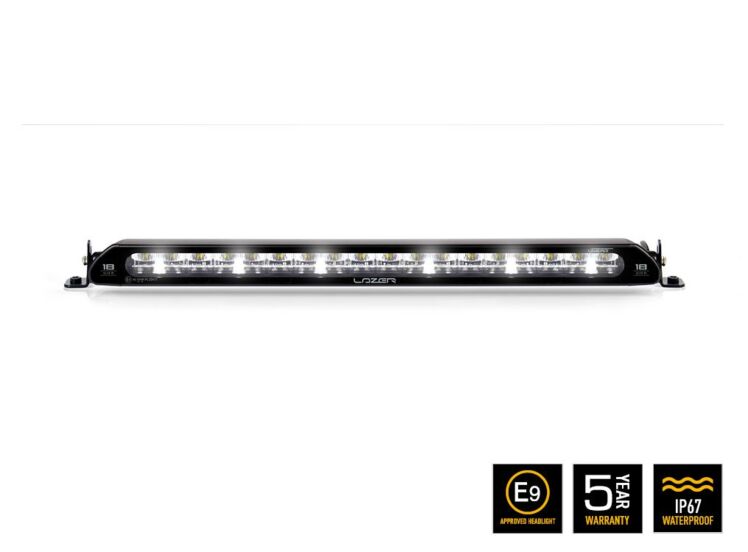

LINEAR-18 ELITE WITH POSITION LIGHT 12150 LUMENS

What's included:

- x1 Linear-18 Elite (with Position Light) LED Lamp

- x1 Anti-Theft Side Mount (1127k)

- x1 Installation Instructions

Voltage Range (DC) 10-32V

LED Life 50,000 hours

Weight 1090 gr

HIGH BEAM FUNCTION

Total Luminous Flux 12150 Lm

Colour Temperature 5000K

Number of High Output LEDs 36

Power Consumption 126 Watts

Current Draw (at 14.4V) 8.8 Amps

Start-up Time * 100ms

CERTIFICATION

High Beam ECE R112

ECE Reference 45

Position Light ECE R7

DIMENSIONS

Width 532 mm

Depth 62 mm

Height 40 mm

PHOTOMETRIC DATA

Horizontal Beam Angle 42 degrees

0.25 lx Line 975 metres

0.5 lx Line 690 metres

1 lx Line 488 metres

3 lx Line 282 metres
