Lazer - Linear-6

What's included:

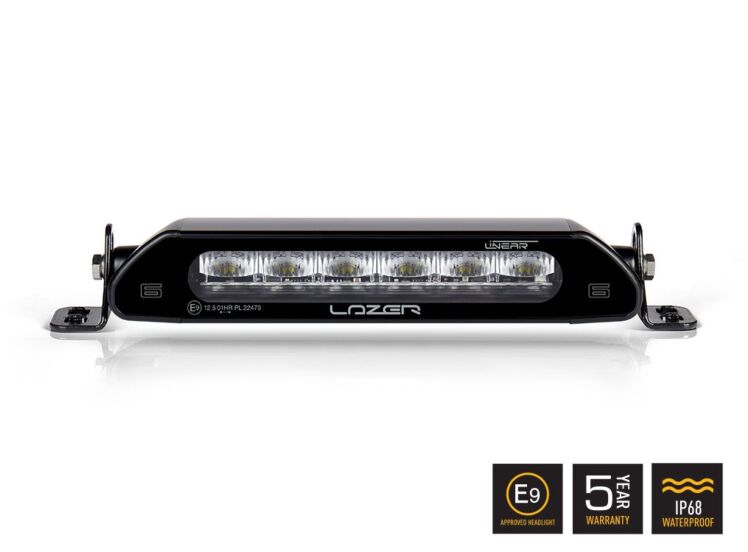

• x1 Linear-6 LED Lamp
• x1 Side Mount (1126k)
• x1 Installation Instructions

Based on: 1x Linear-6 LED Lamp.

• Voltage Range (DC) : 10-32V
• LED Life : 50,000 hours
• Weight : 495 gr

High Beam Funtion

• Total Luminous Flux : 2250 Lm
• Total Driver 'FOV' Flux † : 1602 Lm
• Colour Temperature : 5000K
• Number of High Output LEDs : 6
• Power Consumption : 21 Watts
• Current Draw (at 14.4V) : 1.5 Amps

Certification

• High Beam : ECE R112
• ECE Reference : 12.5

Dimensions

• Width : 232 mm
• Depth : 62 mm
• Height : 40 mm

Photometric Data

• Horizontal Beam Angle : 56 degrees
• 0.25 lx Line : 494 Meters
• 0.5 lx Line : 349 Meters
• 1 lx Line : 247 Meters
• 3 lx Line : 143 Meters
