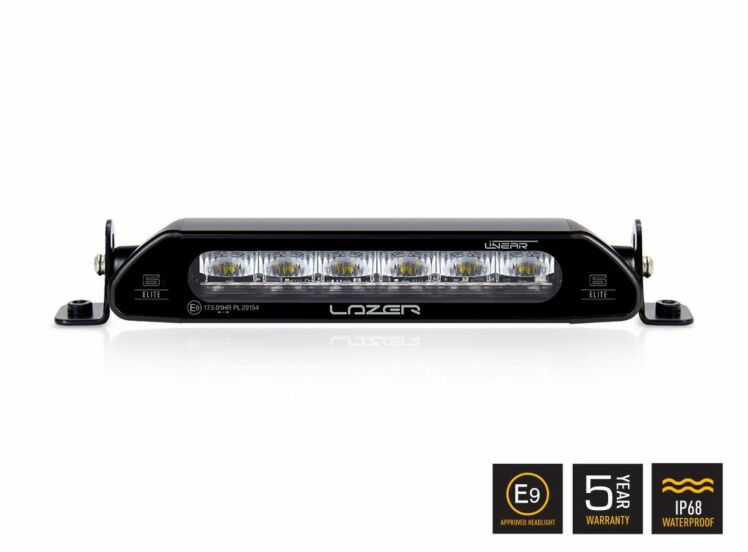

Lazer - Linear-6 Elite

What's included:

• x1 Linear-6 Elite LED Lamp
• x1 Anti-Theft Side Mount (1127k)
• x1 Installation Instructions

Based on: 1x Linear-6 Elite LED Lamp.

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hours
• Weight: 495 gr

High Beam Funtion

• Total Luminous Flux: 4050 Lm
• Total Driver 'FOV' Flux †: 2884 Lm
• Colour Temperature: 5000K
• Number of High Output LEDs: 12
• Power Consumption: 42 Watts
• Current Draw (at 14.4V): 2.9 Amps

Certification

• High Beam: ECE R112
• ECE Reference: 17.5

Dimensions

• Width: 232 mm
• Depth: 62 mm
• Height: 40 mm

Photometric Data

• Horizontal Beam Angle: 64 degrees
• 0.25 lx Line: 563 Meters
• 0.5 lx Line: 389 Meters
• 1 lx Line: 282 Meters
• 3 lx Line: 163 Meters
