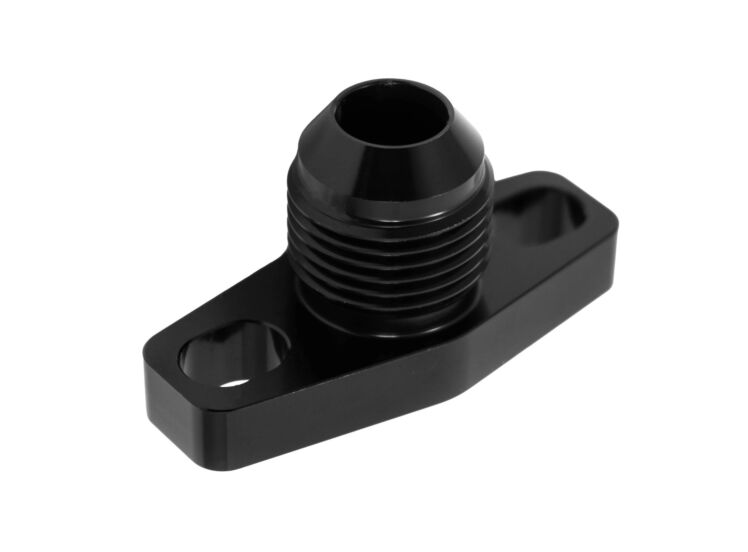

LTEC Turbo Flens Adapter AN10 - Bolt pattern 38 – 41.4MM
SKU:
LT901-7/8-14
Details
LTEC Turbo Flange Adapter AN10
Bolt pattern suitable for 38 – 41.4MM hole spacing
- Dimensions: 24mm x 57mm
- Hole spacing: 38-45mm oblong hole
- Hole diameter: 11mm
- Thread: 7/8- 14UNF (Dash 10)
- Weight: 30g
- Material: Aluminum
- Color: Black anodized
The flange fits, among others, the following turbo compressors:
Garrett T12
Garrett T15
Garrett T2, T20
Garrett T25, T25BB
Garrett T28, T28BB
Garrett GT12
Garrett GT15
Garrett GT20
Garrett GT22
Garrett GT25R, GT2554R
Garrett GT28R, GT2860R
Garrett GT28RS, GT2860RS
Garrett GT2871R
Garrett GT2876R, GT28/40R, GT25/40R
Garrett GT3071R-WG
Garrett GT3076R-WG
Garrett GT30R, GT3076R, GT3076RS, GT30RS, GT30R HF
Garrett GT35R, GT3582R, GT35/40R, GT35R HF
Garrett GT3082R, GT30/40R, GT3082R HF
Garrett GT3071R
Technical specifications
| Manufacturer | LTEC |
|---|
