Oil Pump Gearbox / Diff

OIL PUMP GEARBOX / DIFF

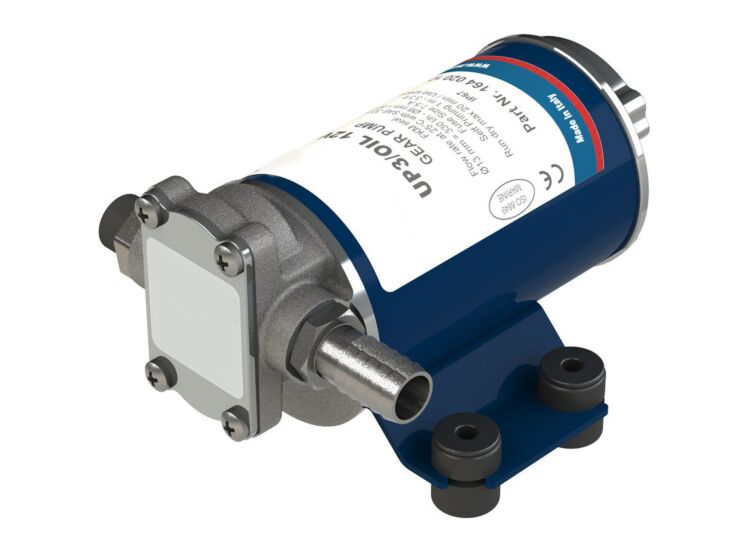

LTEC UP3/OIL 12V/24V GEAR PUMP FOR LUBRICANTS

INSTALLATION & USE

Electric oil transfer gear pump particularly suitable for pumping lubricating oils or viscous liquids, complete with two brass connections for 14mm inner tube and an additional quick coupling connection for 8mm external snake. The pump can be used to extract lubricating oil from engine oil pans by means of the special hose set (OK1). Brass housing with bronze gears, stainless steel shaft and rubber lip seal.

There are countless areas of application for the pump, but only with the permitted liquids listed:< br>

Transferring lubricating oil

Transferring viscous liquids

Transfer of oils, antifreeze

Circulation of viscous liquids

< /p>

Draining engine crankcases

CONSTRUCTION

Volt: 12 or 24V

Consumption: 5A (12V model) 3A (24V model)

Weight: 1.4kg

Dimensions 139x108x86 mm

Exhaust 14mm < p>Max self-priming up to 1 meter

Ports: 3/8″ BSP

Max. flow rate: 5.5 l/min.

Max. pressure: 2 Bar (29psi)

APPLICATION LIMITS

Temperature: Min -10°C / max 60°C

Relative humidity: max. 90°C

Liquids allowed/not allowed:

Allowed: fresh water

Allowed: Engine oil (max 120°C°C-248°F) max viscosity 350 cSt

Allowed: Diesel – Minimum Flash Point (PM): 55°C – 131°F

NOT Allowed: Gasoline (Gasoline)

NOT Allowed: flammable liquids with PM <55°C< /p>

NOT allowed: liquids with viscosity >20 cSt

NOT allowed: food liquids

NOT allowed: corrosive chemical products< /p>

NOT allowed : Solvents
