Facet Red Top Fuel Pump Kit (8mm Tails)

An industry standard for more than 60 years, these lightweight compact pumps can be found in almost every application imaginable. With flow rates up to 170.3 liters/hour, .68 bar, these pumps deliver powerful performance for everything from race cars to heavy agricultural and construction equipment. Compatible with E10 E85.

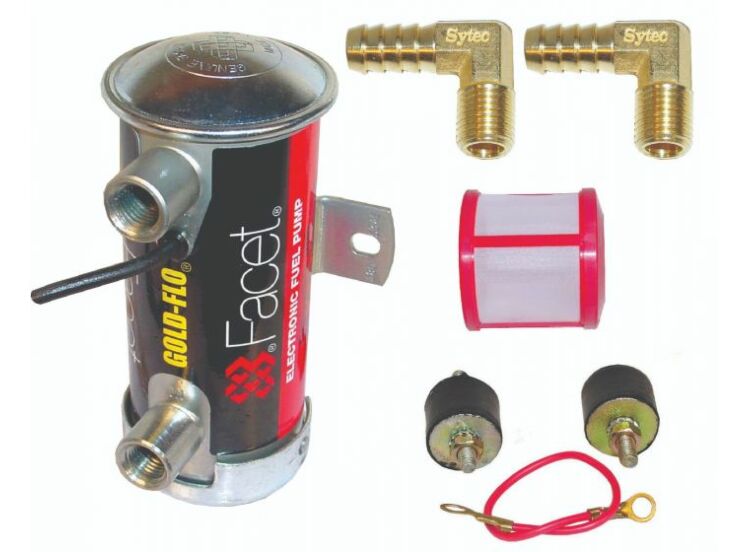

Contents:

1x Pump (480532E)

2x 8mm 90 degree connector (FPA9021B)

1x Facet Mounting Kit (FPA905)

1x Spare Filter (FPA908R)

Specifications

Pump:- 480532E

Voltage:- 12v

Earth:- Neg

Pressure (Bar):- 0,41-0.55

Yield:- Ltr/Hr 170

Dry suction height in meters:- 0. 6

Thread Size:- 1/4 npt

Operating Temperature:- -4.4ºC to +82°C (all models)

Legal Requirements:- Certified and meets EEC 95/54 requirements

Length:-140mm

Diameter:- 54mm

Weight:-0.7kg

Fuel Coupling Installation:- When installing fuel couplings, wrap PTFE tape around the threads or use Loctite 243 to make a fuel resistant seal

Caution:- Designed and manufactured to automotive specification and not recommended for flight maintenance.
