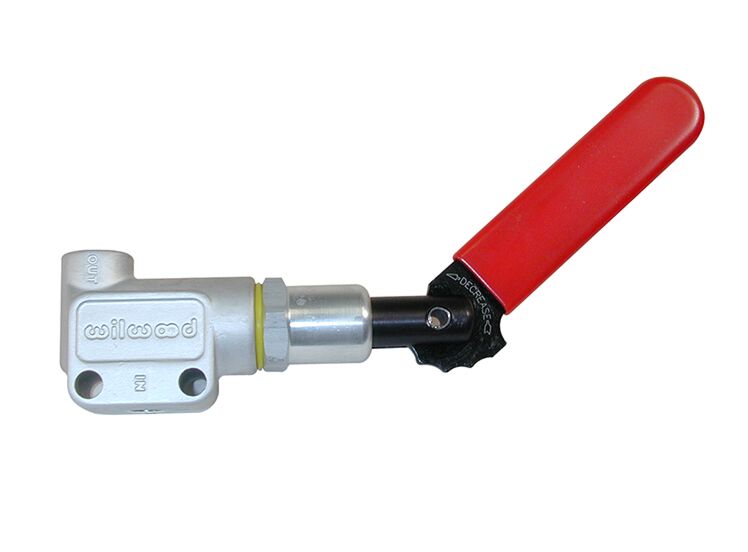

Wilwood - Proportioning Valve Compact Lever
Details
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design.
- Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve.
- This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment.
- Valves weigh only 6.1 ounces (lever), and have two .25” side mounting holes spaced 1.00” apart.
- Inlet / outlet ports are M10X1 bubble flare.
- 2x 442-31P needed to directly fit RVS AN3 hose
Technical specifications
| Manufacturer | Wilwood |
|---|
