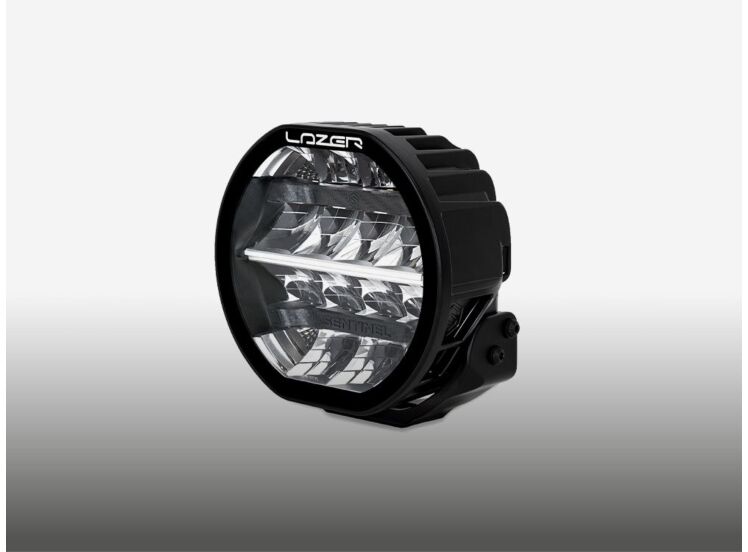

Lazer - Sentinel 7"
SKU:
0S7-STD-SM
Details
Included:
- x1 Sentinel 7'' LED Lamp
- x1 'Slim' Mount Kit (1141-0S7-K)
- x1 Installation Instructions
Based on: 1x Sentinel 7'' Standard.
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Lifetime | 50,000 hrs | 50,000 hrs |
| Weight | 2.5 kg | 2.5 kg |
High Beam Function
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Total Luminous Flux | 5208 Lm | 1041 Lm |
| Total Driver 'FOV' Luminous Flux † | 3250 Lm | 650 Lm |
| Color Temperature | 5000K | 5000K |
| Power Consumption | 60 W | 12 W |
| Peak Current | 5.5 A | 1.2 A |
| Current Draw (at 14.4V) | 4.3 A | 0.9 A |
| Connector | 2-Pin Superseal (+25 cm cable) | |
Dimensions
- Width: 178 mm
- Depth: 81 mm
- Height: 180 mm
Certification
- IP Rating: IP68
- High Beam (E9 approval): ECE R149 - Ref: 12.5 (only in Low Output Mode)
- EMC Certification: ECE R10
- Salt Spray Test: ISO 9227
- Dump Load Protection: ISO 7637-2
Photometric Data
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Horizontal / Vertical Beam Angle | 60° / 12° | |
| 0.25 lx line | 1217 m | 544 m |
| 0.5 lx line | 860 m | 385 m |
| 1 lx line | 608 m | 272 m |
| 3 lx line | 351 m | 157 m |
Technical specifications
| Manufacturer | Lazer |
|---|
