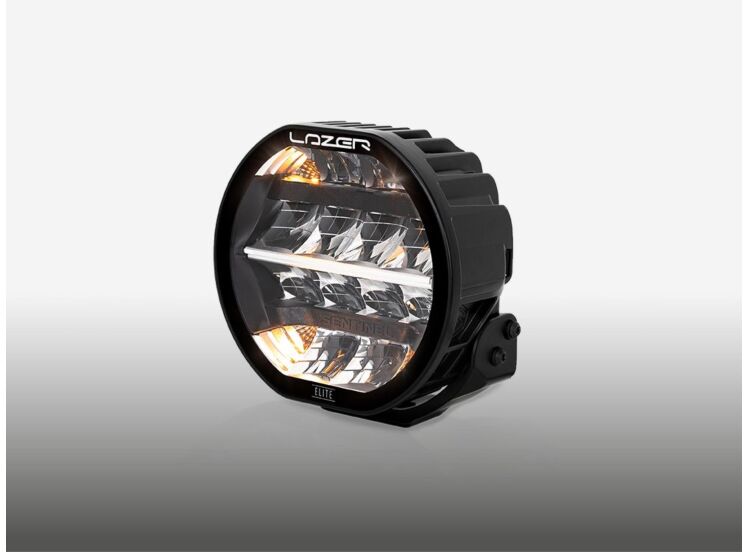

Lazer - Sentinel 7" Elite
SKU:
0S7-ELITE-PL-SM
Details
Included:
- x1 Sentinel 7'' Elite LED Lamp
- x1 'Slim' Mount Kit (1141-0S7-K)
- x1 Black Lens Cover (LC-0S7-BLK)
- x1 Installation Instructions
Based on: 1x Sentinel 7'' Elite LED Lamp.
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Lifetime | 50,000 hours | 50,000 hours |
| Weight | 2.5 kg | 2.5 kg |
Main Beam Function
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Total Light Output | 10,248 Lm | 2,049 Lm |
| Total Driver 'FOV' Light Output † | 6,380 Lm | 1,276 Lm |
| Color Temperature | 5000K | 5000K |
| Power Consumption | 116 W | 23 W |
| Peak Current | 8.8 A | 1.8 A |
| Current Draw (at 14.4V) | 7.6 A | 1.5 A |
| Connector | 3-Pin Superseal (+25 cm cable) | |
Dimensions
- Width: 178 mm
- Depth: 81 mm
- Height: 180 mm
Certification
- IP Rating: IP68
- Main Beam (E9 Approval): ECE R149 – Ref: 12.5 (Low Output Mode only)
- Position Light (white): ECE R148
- EMC Certification: ECE R10
- Salt Spray Test: ISO 9227
- Dump Load Protection: ISO 7637-2
Photometric Data
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Horizontal / Vertical Beam Angle | 65° / 18° | |
| 0.25 lx line | 1233 m | 551 m |
| 0.5 lx line | 872 m | 390 m |
| 1 lx line | 616 m | 276 m |
| 3 lx line | 356 m | 159 m |
Technical specifications
| Manufacturer | Lazer |
|---|
