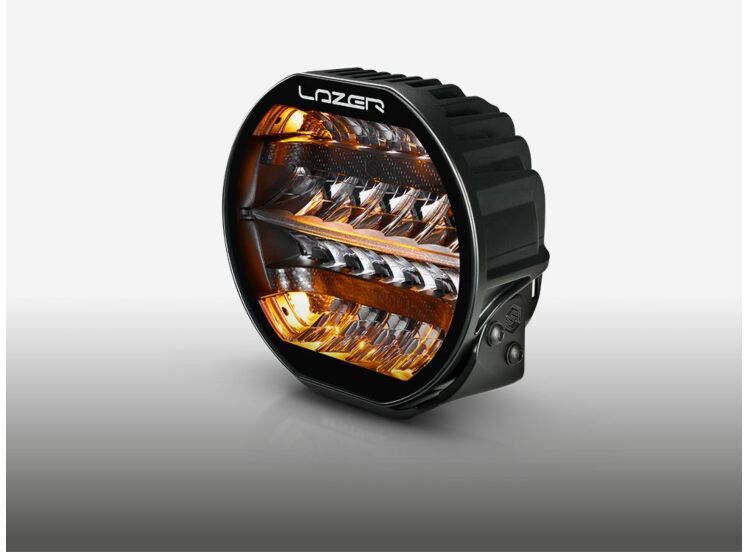

Lazer - Sentinel 9"
SKU:
0S9-PL-SM
Details
Included:
- x1 Sentinel 9'' LED Lamp
- x1 'Slim' Mount Kit (1141k)
- x1 Installation Instructions
Based on: 1x Sentinel 9'' Standard.
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Voltage Range (DC) | 10-32V | |
| LED Lifetime | 50,000 hours | |
| Weight | 2.5 kg | |
High Beam Function
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Total Light Output | 9520 Lm | 1904 Lm |
| Total Driver 'FOV' Light Output † | 5588 Lm | 1118 Lm |
| Color Temperature | 5000K | |
| Power Consumption | 87 W | 17 W |
| Peak Current | 7.7 A | 1.6 A |
| Current Draw (at 14.4V) | 6 A | 1.2 A |
| Connector | 3-Pin Superseal (+25 cm cable) | |
Dimensions
- Width: 225 mm
- Depth: 90 mm
- Height: 230 mm
Certification
- IP Rating: IP68
- High Beam (E9 approval): ECE R112 - Ref: 20 (only in Low Output Mode)
- Position Light (white): ECE R7
- EMC Certification: ECE R10
- Salt Spray Test: ISO 9227
- Dump Load Protection: ISO 7637-2
Photometric Data
| Boost Mode | Low Output / E-Mark Mode | |
|---|---|---|
| Horizontal / Vertical Beam Angle | 52° / 11° | |
| 0.25 lx line | 1414 m | 632 m |
| 0.5 lx line | 1000 m | 447 m |
| 1 lx line | 707 m | 316 m |
| 3 lx line | 408 m | 183 m |
Technical specifications
| Manufacturer | Lazer |
|---|
