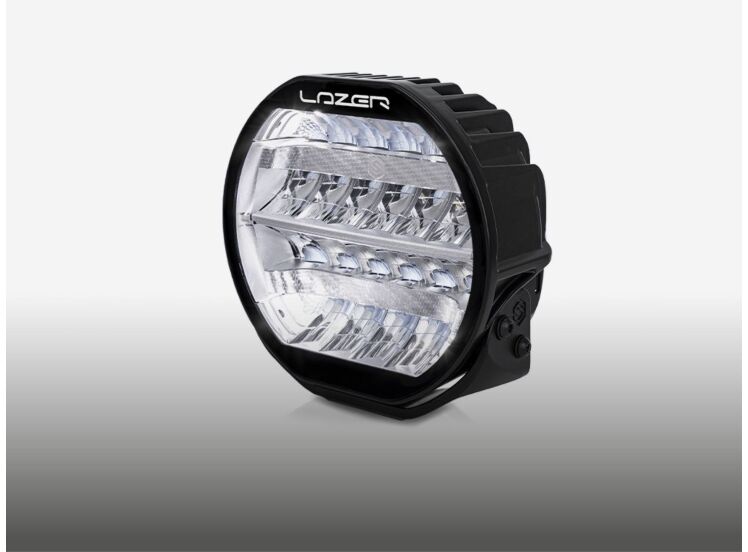

Lazer - Sentinel 9" Chrome
SKU:
0S9-PL-CHR-SM
Details
Included:
- x1 Sentinel 9'' (Chrome) LED Lamp
- x1 'Slim' Mount Kit (1141K)
- x1 Installation Instructions
Based on: 1x Sentinel 9'' (Chrome) LED Lamp.
| Boost Mode | Low Output Mode | |
|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Lifespan | 50,000 hours | 50,000 hours |
| Weight | 2.5 kg | 2.4 kg |
High Beam Function
| Boost Mode | Low Output Mode | |
|---|---|---|
| Total Light Output | 9520 Lm | 1904 Lm |
| Total Driver 'FOV' Light Output † | 5588 Lm | 1118 Lm |
| Color Temperature | 5000K | 5000K |
| Number of High Output LEDs | 20 | 20 |
| Power Consumption | 87 W | 17 W |
| Current Draw (at 14.4V) | 6 A | 1.2 A |
Certification
- High Beam: N/A / ECE R112
- E-Mark Reference: N/A / 20
- Position Light (white): ECE R7
Photometric Data
| Boost Mode | Low Output Mode | |
|---|---|---|
| Horizontal Beam Angle | 52° | 52° |
| 0.25 lx Line | 1414 m | 632 m |
| 0.5 lx Line | 1000 m | 447 m |
| 1 lx Line | 707 m | 316 m |
| 3 lx Line | 408 m | 183 m |
Technical specifications
| Manufacturer | Lazer |
|---|
