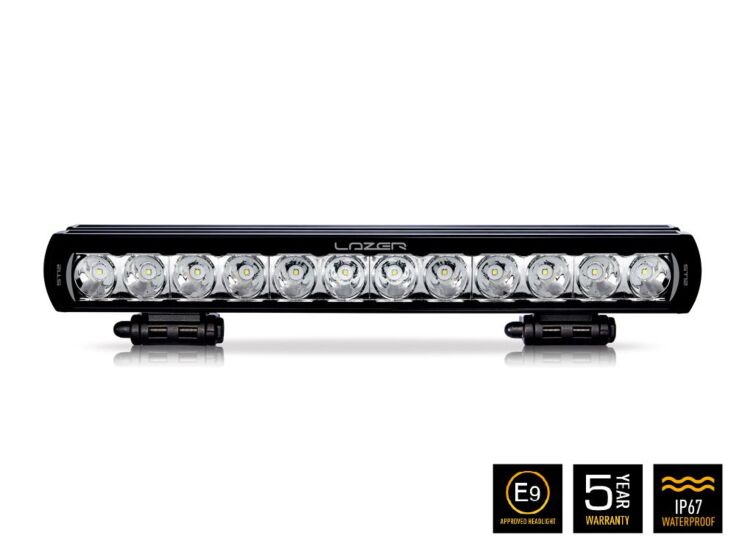

Lazer - ST12 Evolution

Included:

• x1 ST12 Evolution LED Lightbar
• x2 Centre Mount (1114K)
• x1 Installation instructions

Based on: 1x ST12 Evolution LED Lightbar.

Specifications

• Voltage range (DC): 10-32V
• LED lifespan: 50,000 hours
• Weight: 1.63 kg

High Beam Function

• Total light output: 12,408 Lm
• Total driver 'FOV' light output †: 7,470 Lm
• Color temperature: 5000K
• Power consumption: 144 Watt
• Peak current: 16.4 Ampere
• Current draw (at 14.4V): 10 Ampere
• Connector: 2-Pin Superseal (+25 cm cable)

Dimensions

• Width: 524 mm
• Depth: 68 mm
• Height: 64 mm

Certification

• IP rating: IP68
• High beam (E9 approval): ECE R112 - Ref: 25
• EMC certification: ECE R10
• Salt spray test: ISO 9227
• Dump Load Protection: ISO 7637-2

Photometric Data

• Horizontal / vertical beam angle: 40° / 25°
• 0.25 lx line: 962 meters
• 0.5 lx line: 680 meters
• 1 lx line: 481 meters
• 3 lx line: 278 meters
