Lazer - ST2 Evolution

Included:

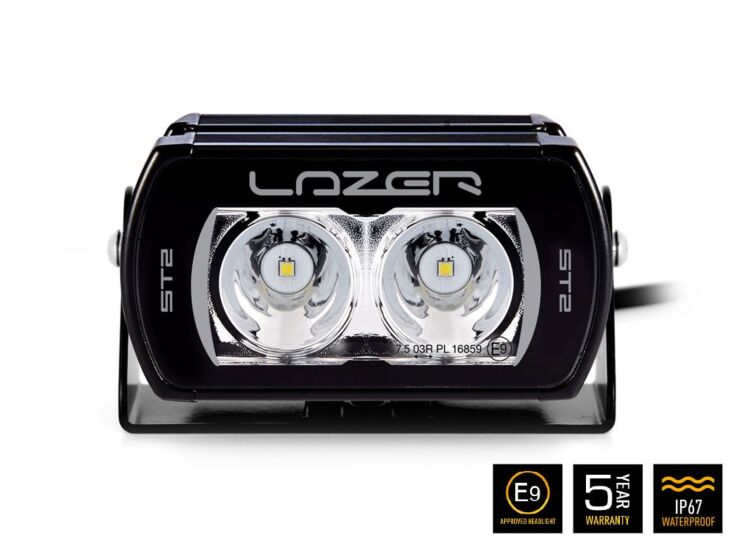

• x1 ST2 Evolution LED Spotlight
• x1 U-Shaped Bracket (1122K)
• x1 Installation Instructions

Based on: 1x ST2 Evolution LED Spotlight.

• Voltage Range (DC): 10-32V
• LED Lifetime: 50,000 hours
• Weight: 0.43 kg

High Beam Function

• Total Light Output: 2,068 Lm
• Total Driver 'FOV' Light Output †: 1,245 Lm
• Color Temperature: 5000K
• Power Consumption: 23 Watt
• Peak Current: 2.7 Ampere
• Current Draw (at 14.4V): 1.6 Ampere
• Connector: 2-Pin Superseal (+25 cm cable)

Dimensions

• Width: 124 mm
• Depth: 68 mm
• Height: 64 mm

Certification

• IP Rating: IP68
• High Beam (E9 Approval): ECE R112 - Ref: 7.5
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2

Photometric Data

• Horizontal / Vertical Beam Angle: 40° / 25°
• 0.25 lx Line: 393 m
• 0.5 lx Line: 278 m
• 1 lx Line: 196 m
• 3 lx Line: 113 m
