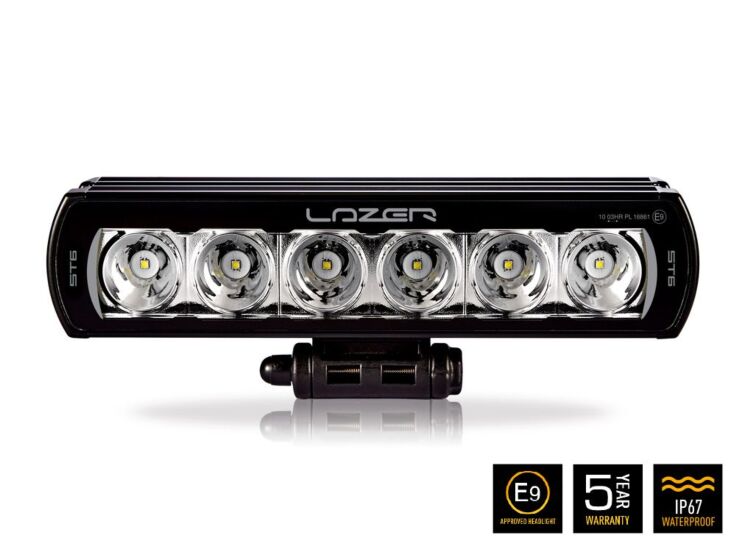

Lazer - ST6 Evolution

Included:

• x1 ST6 Evolution LED Lamp
• x1 Mounting Bracket
• x1 Installation Instructions

Based on: 1x ST6 Evolution LED Lamp.

• Voltage Range (DC): 10-32V
• LED Lifespan: 50,000 hours
• Weight: 0.91 kg

High Beam Function

• Total Light Output: 6,204 Lm
• Total Driver 'FOV' Light Output †: 3,735 Lm
• Color Temperature: 5000K
• Power Consumption: 70 Watts
• Current Draw (at 14.4V): 4.9 Amps
• Peak Current: 8.2 Amps
• Connection: 2-Pin Superseal (+25 cm cable)

Dimensions

• Width: 284 mm
• Depth: 68 mm
• Height: 64 mm

Certification

• IP Rating: IP68
• High Beam: ECE R112 - Ref: 10
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2

Photometric Data

• Horizontal / Vertical Beam Angle: 40° / 25°
• 0.25 lx line: 680 m
• 0.5 lx line: 481 m
• 1 lx line: 340 m
• 3 lx line: 196 m
