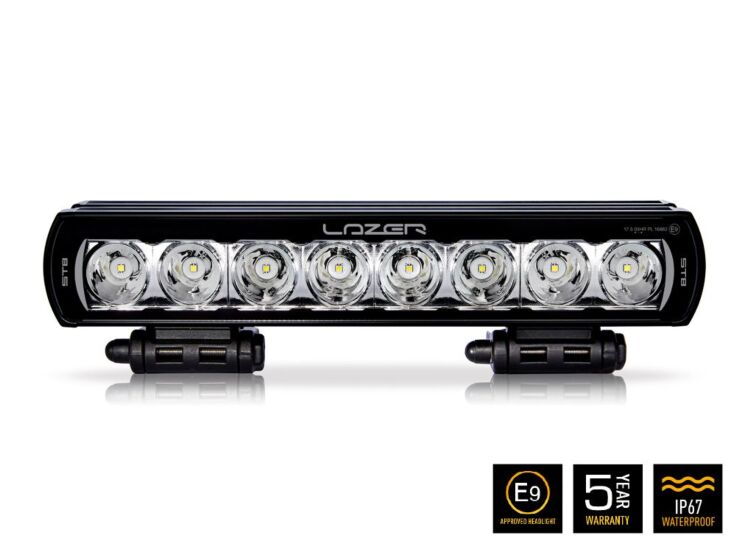

Lazer - ST8 Evolution

Included:

• x1 ST8 Evolution LED Spotlight
• x2 Centre Mount (1114K)
• x1 Installation Instructions

Based on: 1x ST8 Evolution LED Spotlight.

General

• Voltage Range (DC): 10-32V
• LED Lifetime: 50,000 hours
• Weight: 1.15 kg

Main Beam Function

• Total Light Output: 8,272 Lm
• Total Driver 'FOV' Light Output †: 4,980 Lm
• Color Temperature: 5000K
• Power Consumption: 95 Watt
• Peak Current: 9.1 A
• Current Draw (at 14.4V): 6.6 A
• Connector: 2-Pin Superseal (+25 cm cable)

Dimensions

• Width: 364 mm
• Depth: 68 mm
• Height: 64 mm

Certification

• IP Rating: IP68
• Main Beam (E9 Approval): ECE R112 - Ref: 17.5
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2

Photometric Data

• Horizontal / Vertical Beam Angle: 40° / 25°
• 0.25 lx line: 786 m
• 0.5 lx line: 555 m
• 1 lx line: 393 m
• 3 lx line: 227 m
