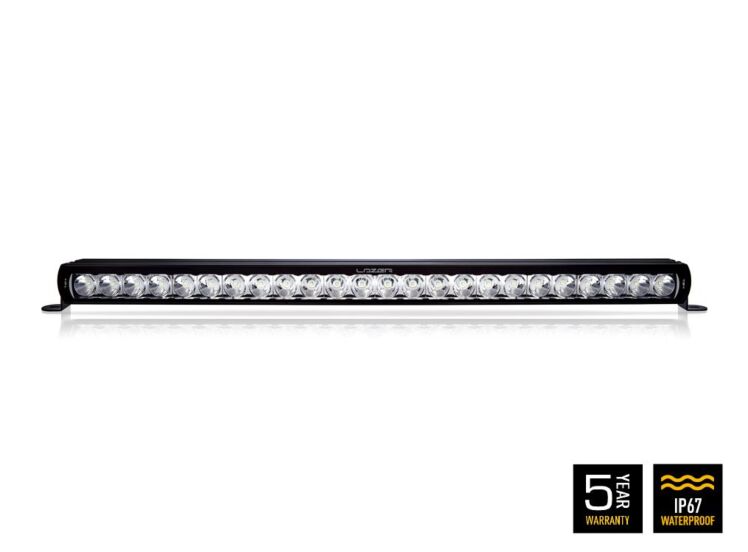

Lazer - T24 Evolution

Included:

• x1 T24 Evolution LED Lightbar
• x3 Centre Mount (1114K)
• x1 Side Mount Kit (1118K-B)
• x1 One-Lamp Wiring Harness (1L-HP-300)
• x1 Installation Instructions

Based on: 1x T24 Evolution LED Lightbar.

• Voltage Range (DC): 10-32V
• LED Lifetime: 50,000 hours
• Weight: 2.48 kg

Main Beam Function

• Total Light Output: 24,816 Lm
• Total Driver 'FOV' Light Output †: 14,939 Lm
• Color Temperature: 5000K
• Power Consumption: 262 Watt
• Peak Current: 27.2 Ampere
• Current Draw (at 14.4V): 18.2 Ampere
• Connector: 2-Pin Superseal (+25 cm cable)

Dimensions

• Width: 1004 mm
• Depth: 68 mm
• Height: 64 mm

Certification

• IP Rating: IP68
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2

Photometric Data

• Horizontal / Vertical Beam Angle: 40° / 25°
• 0.25 lx line: 1361 meters
• 0.5 lx line: 962 meters
• 1 lx line: 680 meters
• 3 lx line: 393 meters
