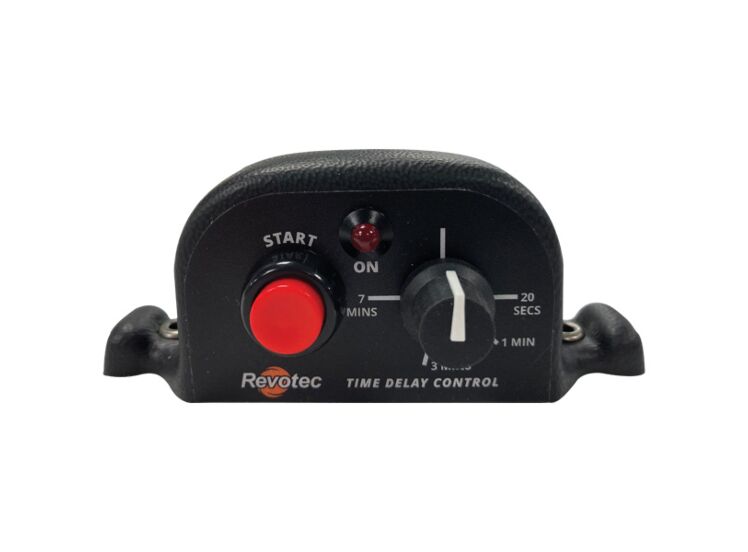

Time Delay Control

An adjustable timed switch that can easily be pre-set by the operator to maintain power to a circuit or component for a set time. Typical use would be to run a fan, water pump or ignition at the end of race.

Designed and maunufactured in the UK for the harsh automotive environment using high quality OEM parts. Features integral relay and bespoke engineered surface mount PCB with digital timer.

Specification:

Pre-set time delay

Variable time delay: up to 7 minutes

Switching capacity: 20 amp

Control supply voltage: 12Volt DC at only 5 mA

Simple push button control to start the timer

Ideal for controlling fans, motors, electric water pumps & heaters

Fitment:

Can be mounted to a flat surface or fixed using cable ties to a roll bar for example.
