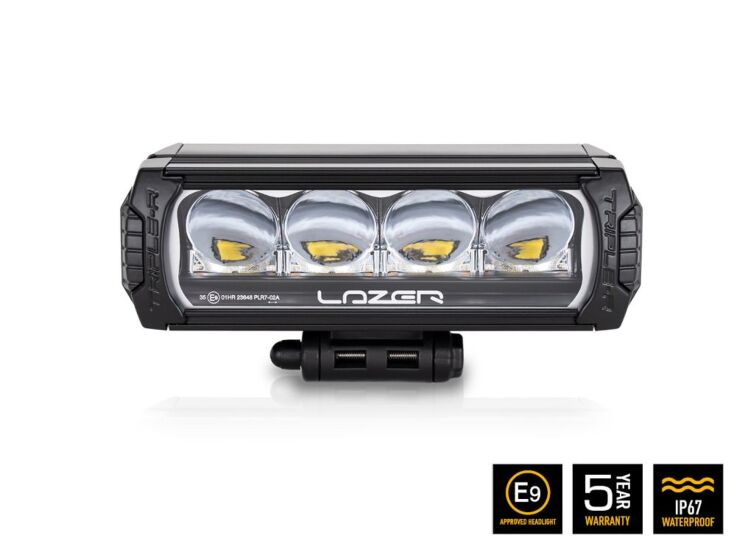

Lazer - Triple-R 750

What's included:

• x1 Triple-R 750 LED Lamp
• x1 Centre Mount (1114k)
• x1 Installation Instructions

Based on: 1x Triple-R 750 LED Lamp.

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hours
• Weight: 1 kg

HIGH BEAM FUNCTION

• Total Luminous Flux: 4620 Lm
• Total Driver 'FOV' Flux †: 2786 Lm
• Colour Temperature: 5000K
• Number of High Output LEDs: 4
• Power Consumption: 45 Watts
• Current Draw (at 14.4V): 3.1 Amps
• Start-Up Time *: 100ms

CERTIFICATION

• High Beam: ECE R112
• E-Mark Ref: 35
• Position Light (White): ECE R7

PHOTOMETRIC DATA

• Horiz Beam Angle: 19 Deg
• 0.25 lx Line: 866 metres
• 0.5 lx Line: 612 metres
• 1 lx Line: 433 metres
• 3 lx Line: 250 metres
