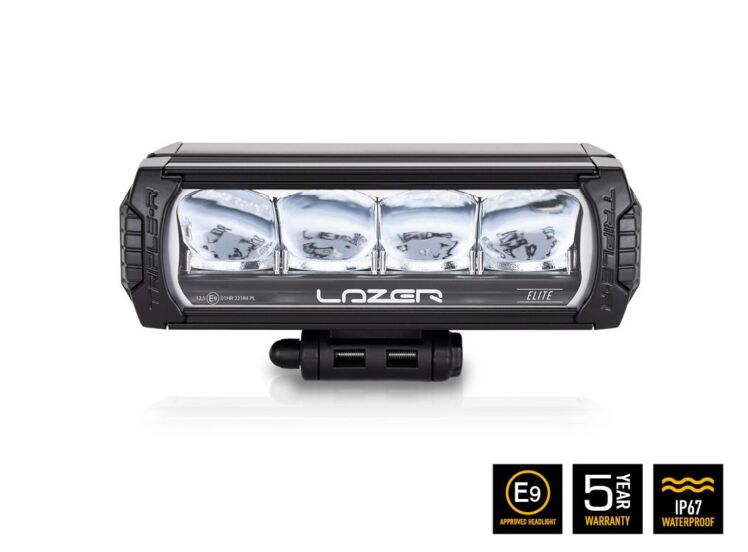

Lazer - Triple-R 750 Elite

What's included:

• x1 Triple-R 750 Elite LED Lamp
• x1 Centre Mount (1114K)
• x1 Installation Instructions

Based on: 1x Triple-R 750 Elite LED Lamp

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hours
• Weight: 1 kg

HIGH BEAM FUNCTION

• Total Luminous Flux (Boost Mode): 5,068 Lm
• Total Luminous Flux (Low Output / E-Mark Mode): 1,267 Lm
• Total Driver 'FOV' Flux † (Boost Mode): 3,340 Lm
• Total Driver 'FOV' Flux † (Low Output / E-Mark Mode): 835 Lm
• Colour Temperature: 5000K
• Power Consumption (Boost Mode): 56 Watts
• Power Consumption (Low Output Mode): 8.88 Watts
• Peak Current Draw (Boost Mode): 5.2 Amps
• Peak Current Draw (Low Output Mode): 0.8 Amps
• Current Draw at 14.4V (Boost Mode): 3.8 Amps
• Current Draw at 14.4V (Low Output Mode): 0.6 Amps
• Connector: 2-Pin Superseal (+25cm Cable)

DIMENSIONS

• Width: 230 mm
• Depth: 105 mm
• Height: 73 mm

CERTIFICATION

• IP Rating #: IP68
• High Beam (E9 approval): ECE R112 - Ref: 12.5 (in Low Output Mode only)
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2

PHOTOMETRIC DATA

• Horizontal / Vertical Beam Angle: 42° / 13°
• 0.25 Lux (Boost Mode): 1033 m
• 0.25 Lux (Low Output Mode): 462 m
• 0.5 Lux (Boost Mode): 731 m
• 0.5 Lux (Low Output Mode): 327 m
• 1 Lux (Boost Mode): 517 m
• 1 Lux (Low Output Mode): 231 m
• 3 Lux (Boost Mode): 298 m
• 3 Lux (Low Output Mode): 133 m
