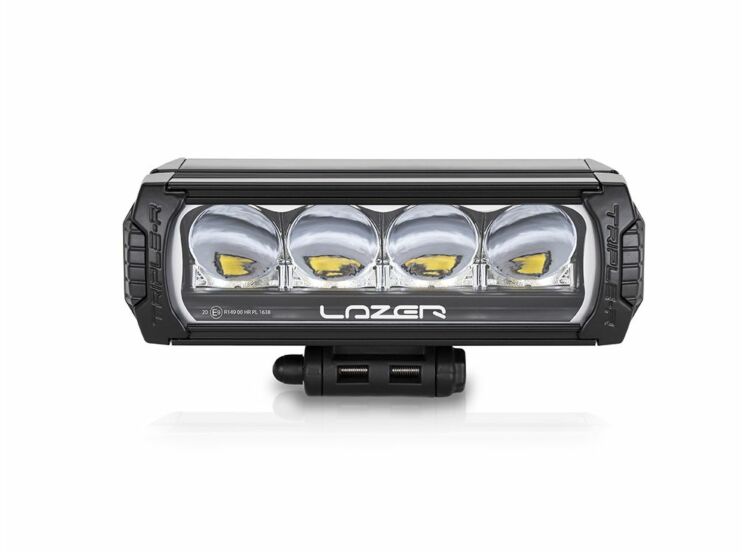

Lazer - Triple-R 750 Wide

What's included:

• x1 Triple-R 750 Wide LED Lamp
• x1 Centre Mount (1114K)
• x1 Installation Instructions

Based on: 1x Triple-R 750 Wide.

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hours
• IP Rating: IP 68
• Weight: 1 kg

HIGH BEAM FUNCTION

• Total Luminous Flux: 4620 Lm
• Total Driver 'FOV' Flux †: 2633 Lm
• Colour Temperature: 5000K
• Number of High Output LEDs: 4
• Power Consumption: 44 Watts
• Peak Current Draw (10V): 4.4 Amps
• Current Draw (14.4V): 3.1 Amps

CERTIFICATION

• High Beam: ECE R149
• E-Mark Ref: 20

PHOTOMETRIC DATA

• Horiz Beam Angle: 40°
• 0.25 lx Line: 587m
• 0.5 lx Line: 415m
• 1 lx Line: 293m
• 3 lx Line: 169m
