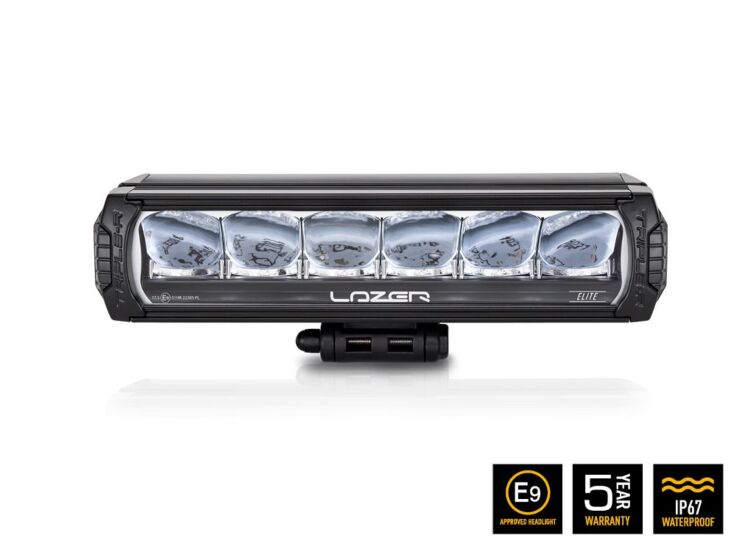

Lazer - Triple-R 850 Elite
Details
What's included:
- x1 Triple-R 850 Elite LED Lamp
- x1 Centre Mount (1114K)
- x1 Installation Instructions
Based on: 1x Triple-R 850 Elite.
| Boost Mode | Low Output Mode | |
|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 1.34 kg | 1.34 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 8068 Lm | 2017 Lm |
| Total Driver 'FOV' Flux † | 5317 Lm | 1329 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 6 | 6 |
| Power Consumption | 73 Watts | 18 Watts |
| Current Draw (at 14.4V) | 5.1 Amps | 1.3 Amps |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 17.5 |
| PHOTOMETRIC DATA | ||
| Horiz Beam Angle | 42 Deg | 42 Deg |
| 0.25 lx Line | 1162 metres | 520 metres |
| 0.5 lx Line | 822 metres | 367 metres |
| 1 lx Line | 581 metres | 260 metres |
| 3 lx Line | 335 metres | 150 metres |
Technical specifications
| Manufacturer | Lazer |
|---|
