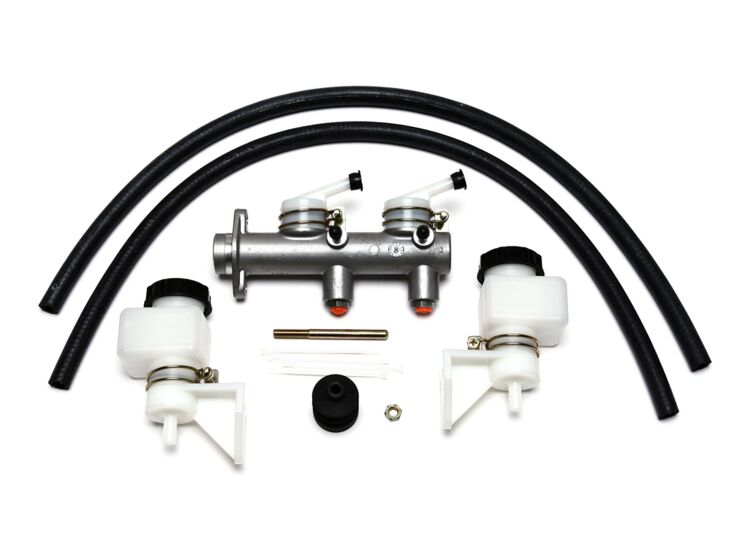

Wilwood - Tandem Remote Master Cylinder
SKU:
260-7563
Details
Wilwood combination remote tandem master cylinders provide one of the safest ways to actuate 4-wheel or dual-caliper axle brake systems. These versatile, lightweight, and easily adapted master cylinders provide single-pushrod activation of two separate brake fluid circuits. By completely isolating the fluid reservoirs and circuits, the front and rear brakes are able to operate independently of each other and provide a safety net, should any one side of the system become inoperable. They're a great match for Wilwood's bolt-on disc brake kits, systems configured from OE components, and a variety of industrial applications.
Brand: | Wilwood Disc Brakes |
Manufacturer's Part Number: | 260-7563 |
Part Type: | Master Cylinders |
Product Line: | Wilwood Combination Remote Tandem Master Cylinders |
Master Cylinder Usage: | Brake |
Master Cylinder Bore Size: | 1.000 in. |
Master Cylinder Material: | Aluminum |
Master Cylinder Finish: | Natural |
Bowl Design: | Dual |
Mounting Hole Quantity: | 2 holes |
Mounting Flange Center to Center Distance (in.): | 2.250 in. |
Master Cylinder Stroke: | 1.100 in. |
Remote Reservoir: | Yes |
Reservoir Included: | Yes |
Reservoir Material: | Plastic |
Master Cylinder Cap Included: | Yes |
Pushrod Included: | Yes |
Mounting Brackets Included: | Yes |
Hardware Included: | No |
Quantity: | Sold as a kit. |
Notes: | Pushrod is 3.380 in. long with 5/16-24 threads. |
Technical specifications
| Manufacturer | Wilwood |
|---|
