Classic 275 Flange Neck

Artikelnummer:
CFN275
€ 77,45
Incl. 21% BTW
  • Gratis verzending vanaf 100 euro in NL / BE / DE

  • Professioneel advies

  • Fysieke 1000 m2 showroom

Productinformatie

Specifications:

Options: N/A

Fixing Arrangement: 6 x M5 CSK Bolts

Applications: Fuel, Oil & Water Tanks

Compatibilities: Compatible with Add Blue

 Operation Temperature -40°C to +80°C

Finish: Anodised Silver +AA6 BS EN ISO 7599

Weight: 75.0 grams

Supplied With: Flange Neck

 M5 Screw Pack (CSK Screws, Washers, Nyloc Nuts)

 Gasket

Materials:

Flange: Aluminium Alloy 6082/T6

Screw Pack: A2 Type Stainless Steel

Gasket: NBR Cork

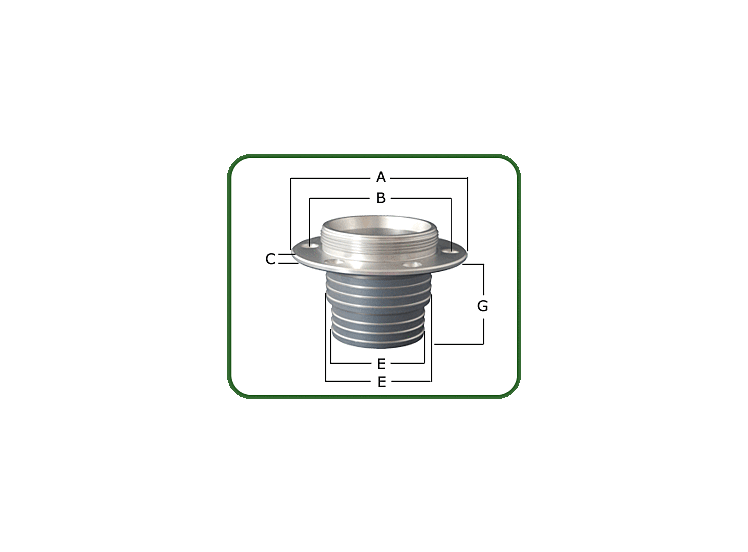

Dimensions:

Outer Diameter A: 94.0mm

Thread Specification B: 2.75” x 16TPI WHITFORM Thread

Height C: 16.0mm

PCD D: 6 x M5 CSK Holes on a 76.2mm PCD

Height + Diameter E: Ø57.0 x 26.0mm

Height + Diameter F: Ø50.0 x 20.0mm

Optional(‘s):

 Viton A Gasket

 Locking Insert

Classic 2.75” Flat Top Cap

Classic 2.75” Bus Style Cap

Ø51.0/57.0 Straight Hose 1m

Ø51.0/57.0 Angle Hose 90°

Ø51.0/57.0 Angle Hose 45°

Lead-Free Flap

Technische specificaties

Technische specificaties
Merk Newton
