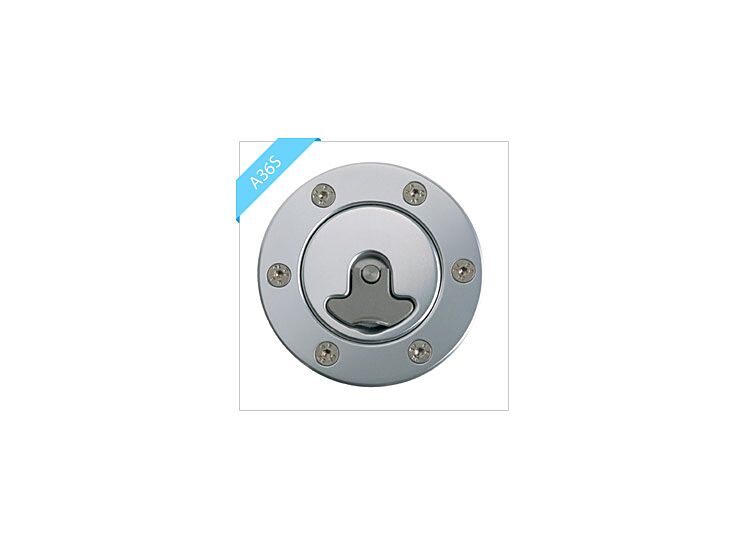

Flens zonder hals, 6 schroeven, zonder slot

Name: Flens zonder hals, 6 schroeven, zonder slot
SKU: A36S
Price: 128.11 EUR
Availability: InStock

Artikelnummer:

A36S

Specifications

Options: Non-Locking.

Fixing Arrangement: 6 x M5 Countersunk Bolts

Applications: Fuel, Oil & Water Tanks

Finish: Anodised Clear (Silver)

Weight: 169 g

Supplied with: (6) Nylock Nuts

(1) Nitrile bonded Cork Gasket

(6) M5 x 12mm S/S screws

(6) Washers

Materials

Centre-Forging: Aluminium Alloy 6082

Flange: Aluminium Alloy 6082/T6

O Ring: Viton A

Saddle: Acetal

Dimensions

Outside Diameter A: 94.0 mm

Centre Diameter B: 58.4 mm

Bolt Circle Dia (PCD) C 76.2 mm (3.0”)

Overall Depth I 33.7 mm

Bore 44.5 mm

Spigot 62.4 mm

Neck Diameter G N/A

Flange Thickness 3.25 mm

Technische specificaties
Merk	Newton
