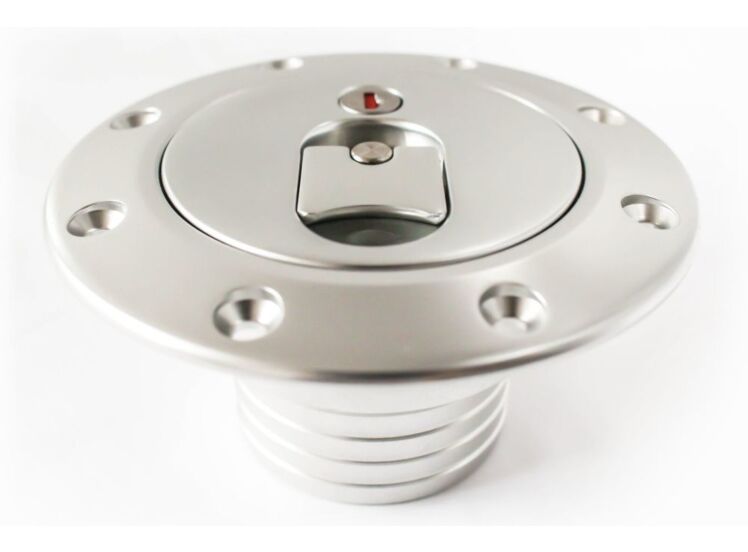

Integrale flens Ø57mm, 8 schroeven, met slot

Specifications:

Fixing Arrangement: 8 x M05 CSK Bolts

Applications: Fuel, Oil & Water Tanks

Compatibilities: Compatible with Jet Fuel 100LL

Operation Temperature -40°C to +80°C

Finish: Anodised Clear

Weight: 395.0 grams

Supplied With: Cap

Flange neck

M05 Screw Pack (CSK Screws, Washers & Nyloc Nuts)

NBR Cork Gasket

Materials:

Centre Cap: Aluminium Alloy 6082/T6

O-Ring: Viton A (FPM or FKM)

Saddle: Acetal POM Kepital F20-03

Lever & Centre Pin: Stainless Steel 303/304

Washer & Nyloc Nut: Stainless Steel A2 Type

Gasket: Neoprene Bonded Cork (NBR)

Dimensions:

Outside Diameter A: 120.0mm

Centre Diameter B: 76.5mm

Bolts Circle Diameter C: 101.6mm

Depth D: 35.5mm (Adjustable)

Spigot E: 80.0 (Ø81.0 Cut-Out)

Neck Diameter F: 57.0mm

Flange Thickness: 6.0mm
