OMEX Sequential Shiftlight

Artikelnummer:
OMSLS
€ 254,10
Incl. 21% BTW
  • Gratis verzending vanaf 100 euro in NL / BE / DE

  • Professioneel advies

  • Fysieke 1000 m2 showroom

Downloads

Productinformatie

Perfectly timed shifts.

Trying to watch the vehicle’s rev counter to make these gear shifts takes your concentration away from the many other things you need to look at when driving. The Shift Light Sequential gives an unmissable visual indication preparing you with the green and yellow lights, then showing the gear shift point with the red light to allow you perfectly timed gear shifts, every time. Multiply these gained tenths of seconds per gear shift over an entire race, rally stage, sprint or hillclimb and you have found the difference between losing and winning.


Make the most of your engine’s power.

Shift gear too early and you not only miss out on the power at the top of the rev range but also drop to a lower engine speed that is below the optimum torque band making acceleration slower after the gear shift. Shift gear too late and you can hit the rev limiter or run the engine where the power is dropping off, wasting valuable tenths of seconds.

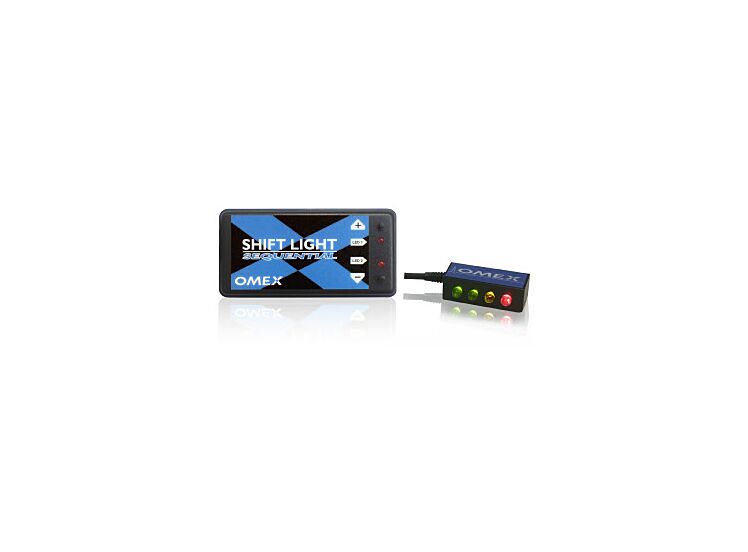

Small remote LED module

Incorporates four incrementally lighting LEDs. Both the final shift point and the increments between LEDs are user definable to suit the driver's needs. With the small shift light unit on a remote lead, only the shift light unit itself needs to be on the dashboard; vital in small single seat race cars with tiny dashboard areas and ideal for a hidden ‘factory’ look on road cars.


Rev Range
2Cyl 1,000rpm - 20,000rpm
4Cyl 1,000rpm - 20,000rpm
6cyl 1,000rpm - 12,000rpm
8cyl 1,000rpm - 10,000rpm


Compatibility
Can be triggered from any 0-12V engine speed trigger, typically the standard coil trigger wire or the standard tachometer trigger wire.


Accuracy

Adjustable in steps of 100rpm

Accurate to +/- 10rpm @ 6,000rpm


How to:

Omex Shift Light Sequential Tutorial

Technische specificaties

Technische specificaties
Merk Omex
