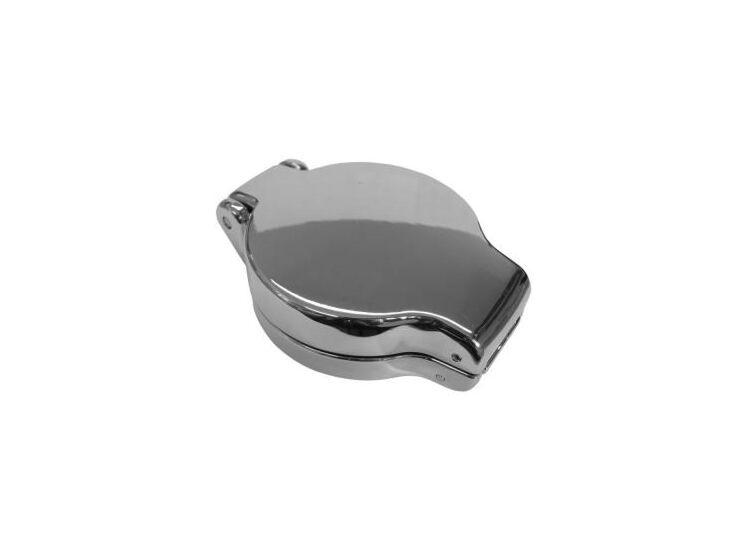

Tankdop Classic 275

Specifications:

Options: Non-Locking or Locking (Supplied with Locking Insert)

Fixing Arrangement: Can either be Tank Mounted (via Flange) or Remotely

Mounted (via Flange and hose tail).

Applications: Fuel, Oil & Water Tanks

Compatibilities: Operation Temperature -40°C to +80°C

Finish: Chrome Plated

Weight: 525 grams

Materials:

Centre Cap: Zinc Die Casted/ Chrome Plated

Seal: Viton A or Fibre Gasket (Optional)

Dimensions:

A: 115.4mm

B: 35.0mm

C: 85.0mm

D: 41.1mm

E: 2.75” x 16TPI WHIT MED THD

Filling Aperture: Ø51.0mm
