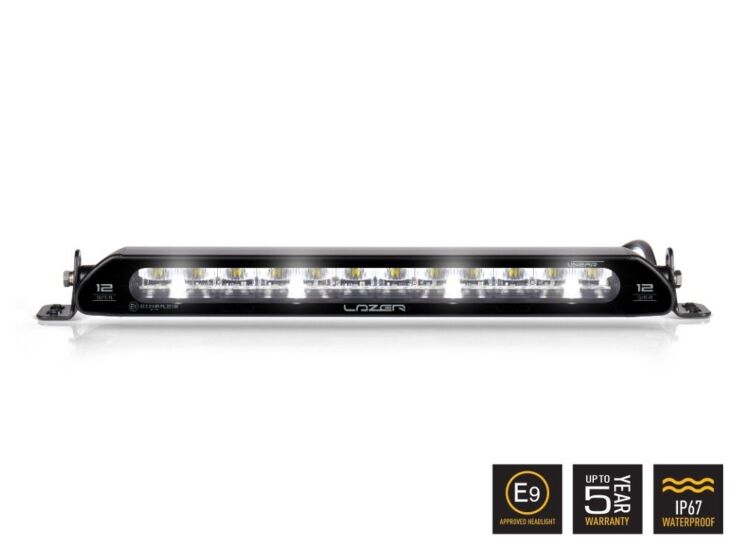

Lazer - Linear-12 Elite with Position Light

What's included:

• x1 Linear-12 Elite (with Position Light) LED Lamp
• x1 Anti-Theft Side Mount (1127k)
• x1 Installation Instructions

Based on: 1x Linear-12 Elite LED Lamp.

• Voltage Range (DC) : 10-32V
• LED Life : 50,000 hours
• Weight : 800 gr

HIGH BEAM FUNCTION

• Total Luminous Flux : 8100 Lm
• Number of High Output LEDs : 24
• Power Consumption : 84 Watts
• Current Draw (at 14.4V) : 5.8 Amps
• Start-up Time * : 100ms

CERTIFICATION

• High Beam : ECE R112
• ECE Reference : 37.5
• Position Light : ECE R7

DIMENSIONS

• Width : 382 mm
• Depth : 62 mm
• Height : 40 mm

PHOTOMETRIC DATA

• Horizontal Beam Angle : 42 Degrees
• 0.25 lx Line : 796 metres
• 0.5 lx Line : 563 metres
• 1 lx Line : 398 metres
• 3 lx Line : 230 metres
