Lazer - Linear-18

What's included:

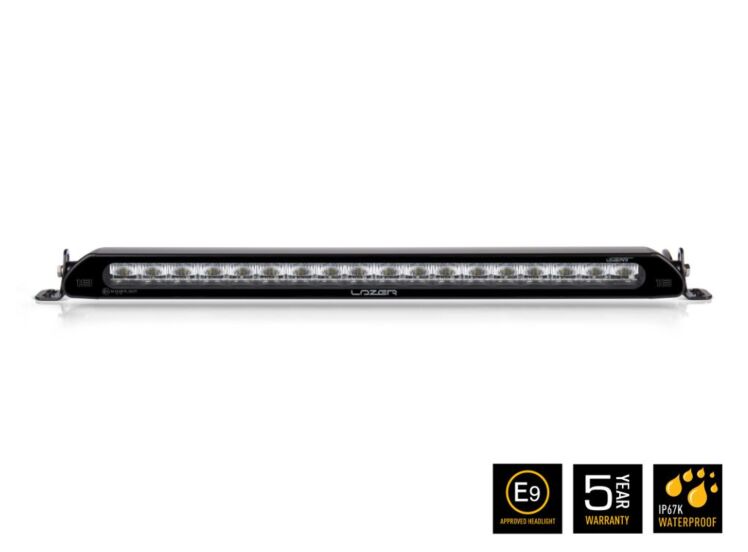

• x1 Linear-18 LED Lamp
• x1 Side Mount (1126k)
• x1 Installation Instructions

Based on: 1x Linear-18 LED Lamp.

• Voltage Range (DC) : 10-32V
• LED Life : 50,000 hours
• Weight : 1090 gr

High Beam Function

• Total Luminous Flux : 6750 Lm
• Colour Temperature : 5000K
• Number of High Output LEDs : 18
• Power Consumption : 63 Watts
• Current Draw (at 14.4V) : 4.4 Amps
• Start-up Time * : 100ms

Certification

• High Beam : ECE R112
• ECE Reference : 30

Dimensions

• Width : 532 mm
• Depth : 62 mm
• Height : 40 mm

Photometric Data

• Horizontal Beam Angle : 34 degrees
• 0.25 lx Line : 855 metres
• 0.5 lx Line : 605 metres
• 1 lx Line : 428 metres
• 3 lx Line : 247 metres
