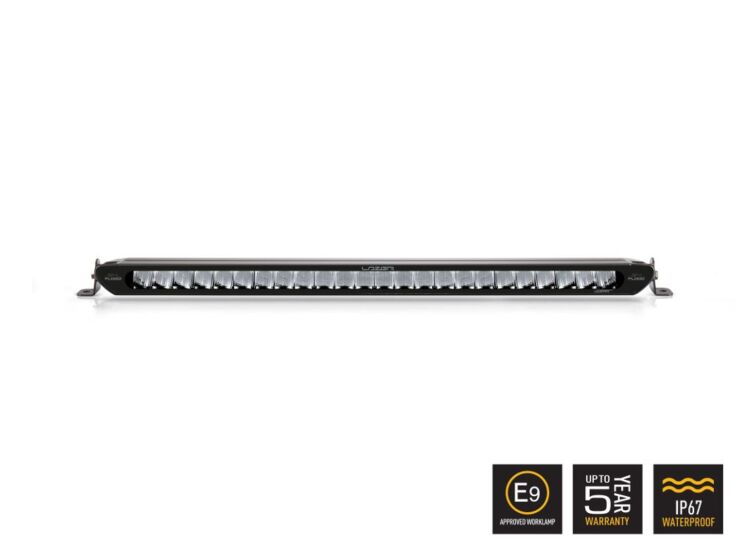

Lazer - Linear-24 Flood

What's included:

• x1 Linear-24 Flood
• x1 Anti-Theft Side Mount (1127K)

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hours
• Weight: 1.5 kg

HIGH BEAM FUNCTION

• Total Luminous Flux: 16,200 Lm
• Effective Lumens †: 11,534 Lm
• Colour Temperature: 5000K
• Power Consumption: 168 Watts
• Current Draw (14.4V): 11.7 Amps
• Connector: 2-Pin Deutsch DT (+28cm Cable)

DIMENSIONS

• Width: 682 mm
• Depth: 62 mm
• Height: 40 mm

CERTIFICATION

• IP Rating #: IP68 / IP69K
• EMC Certification: ECE R10
• EMC Protection: CISPR-25 (Class 3)
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2

OPERATING CONDITIONS

• Operating Temperature: -40°C … +90°C
• Vibration (BS EN 60068): 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

PHOTOMETRIC DATA

• 1 Lux: 210m
• 5 Lux: 94m
• 20 Lux: 47m
• 50 Lux *: 30m
