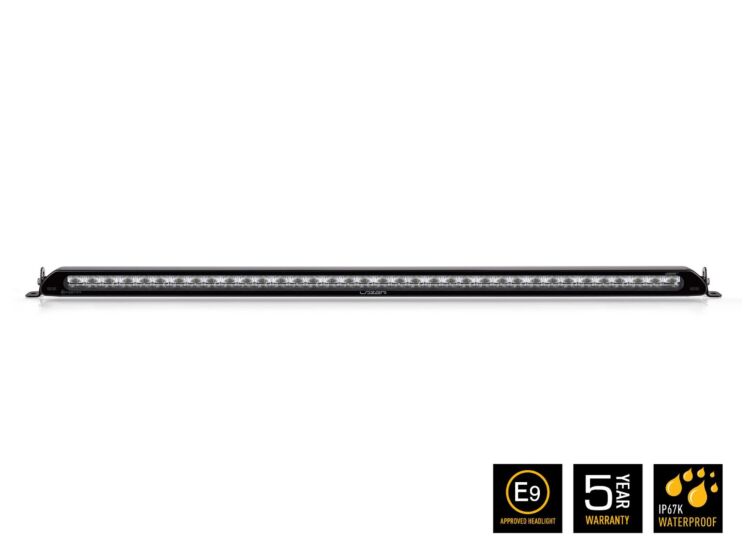

Lazer - Linear-36

What's included:

• x1 Linear-36 LED Lamp
• x1 Anti-Theft Side Mount (1127k)
• x1 Installation Instructions

Based on: 1x Linear-36 LED Lamp.

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hours
• Weight: 2.7 kg

HIGH BEAM FUNCTION

• Total Luminous Flux: 13500 Lm
• Colour Temperature: 5000K
• Number of High Output LEDs: 36
• Power Consumption: 126 Watts
• Current Draw (at 14.4V): 8.8 Amps
• Start-up Time *: 100ms

CERTIFICATION

• High Beam: ECE R112
• ECE Reference: 2x 30

DIMENSIONS

• Width: 982 mm
• Depth: 62 mm
• Height: 40 mm

PHOTOMETRIC DATA

• Horizontal Beam Angle: 34 degrees
• 0.25 lx Line: 940 metres
• 0.5 lx Line: 665 metres
• 1 lx Line: 470 metres
• 3 lx Line: 271 metres
