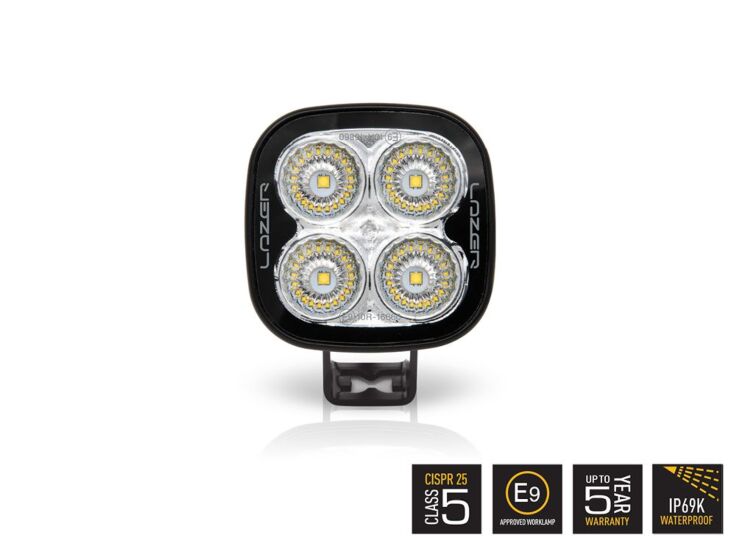

UTILITY-25

Voltage Range (DC) 10-32V

LED Life 50,000 hours

Colour Temperature 5,000 Kelvin

Weight 360 gr

HIGH BEAM FUNCTION

Total Luminous Flux 3016 Lm

Colour Temperature 5000K

Number of High Output LEDs 4

Power Consumption 25 Watts

Current Draw (at 14.4V) 1.6 Amps

CERTIFICATION

Work Lamp ECE R10

IP Rating IP67 / IP69K

Salt Spray Test ISO 9227 (250H)

EMC Protection CISPR-25: 2008 (Class 5†)

OPERATING CONDITIONS

Shock TBC

Vibration (BS EN 60068) 10Hz-2000Hz, 10gn

Operating Temperature -40deg C ... +90degC

DIMENSIONS

Width 80 mm

Depth 56 mm

Height 80 mm

PHOTOMETRIC DATA

1Lx Line @ 54m

5Lx Line @ 24m

20Lx Line @ 12m

50Lx Line @ 7m*

* - 50Lx represents HSE guidelines for effective illumination when working outdoors at night.

What's included:

- x1 Utility-25 LED Work Lamp

- x1 Mounting Bracket
